  3. Digital Signage Totem with Brochure Holder — 21.5" Screen & Magazine Rack
-

Digital Signage Totem with Brochure Holder — 21.5" Screen & Magazine Rack

The Screen That Sells, The Shelf That Converts — Ads Above, Brochures Below

Share

https://www.eellnet.com/web/image/product.template/45/image_1920?unique=a445360
Key Benefits

  • Advertising + Publications
  • Premium Locations
  • 4K Ultra HD Display
  • Remote Content Management
  • Sleek Modern Design

¥ 0.00 0.0 CNY ¥ 0.00

  • size
  • Configuration

This combination does not exist.

Contact Us
size: 21.5inch
Digital Signage Totem · Built-In Brochure & Magazine Rack

A slim floor-standing totem that does two jobs in one footprint: a 21.5" Full-HD screen plays your ads and announcements up top, while the built-in literature rack below holds the brochures, magazines and leaflets people actually take away. The screen draws attention; the shelf converts it. Ideal for hotel lobbies, bank waiting areas, showrooms, clinics and exhibition halls.

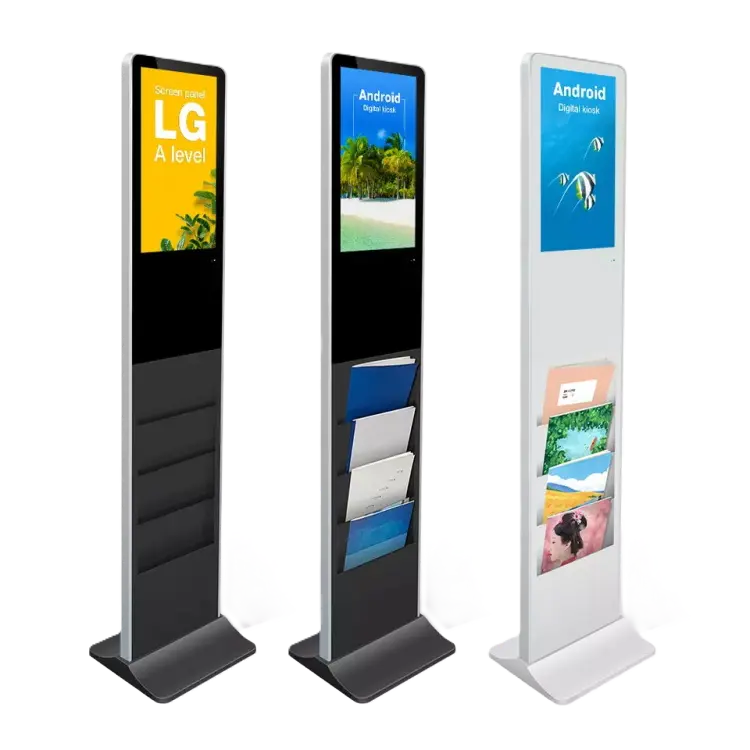

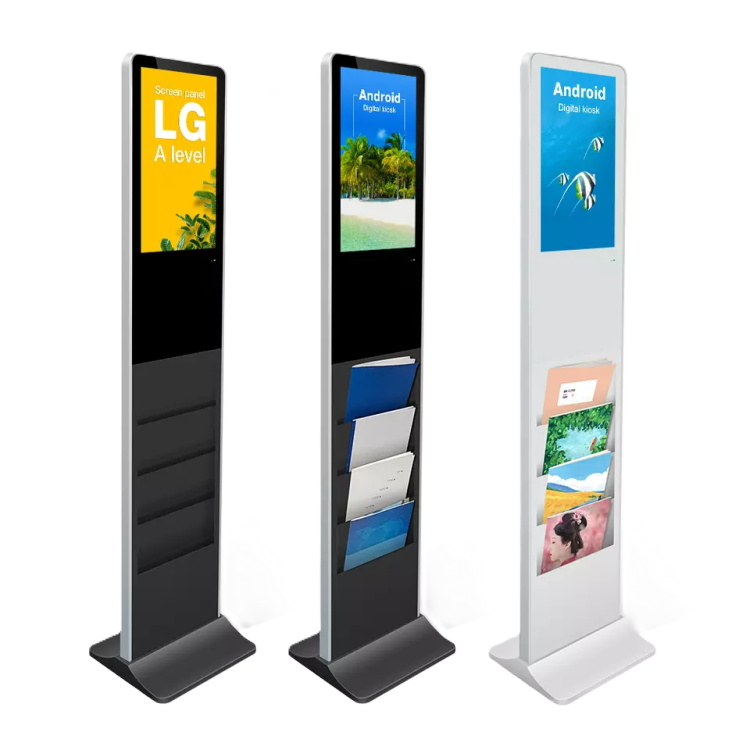

Matte black and pearl white finishes — the literature rack integrates cleanly into the slim column.
Display
21.5" FHD IPS
A-grade panel · 1080p
Literature Rack
4 Tiers
A4 brochures & magazines
Surface
Tempered Glass
Scratch-resistant front
Scheduling
Timer On/Off
Auto power schedule

Overview

Screens attract. Paper converts. This totem does both.

In a lobby or waiting room, motion on a screen is what catches the eye — but a brochure is what a visitor slips into their bag and reads later. Most venues solve this with two separate pieces of furniture: a digital sign here, a wobbling acrylic leaflet stand there. This totem merges them into one slim, 40 mm-thin column: the 21.5" screen loops your video content up top, and the four-tier rack below keeps your printed material tidy, visible and within reach. The screen runs full Android with remote content management, an intelligent split-screen mode for mixing video with text banners, and a timer switch that powers the unit on and off to match your opening hours — no staff involvement needed.

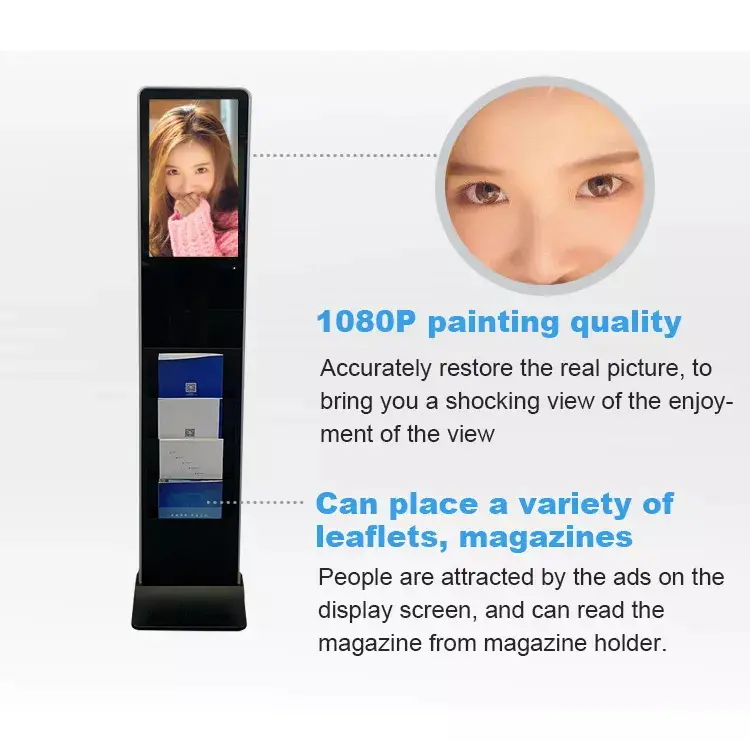

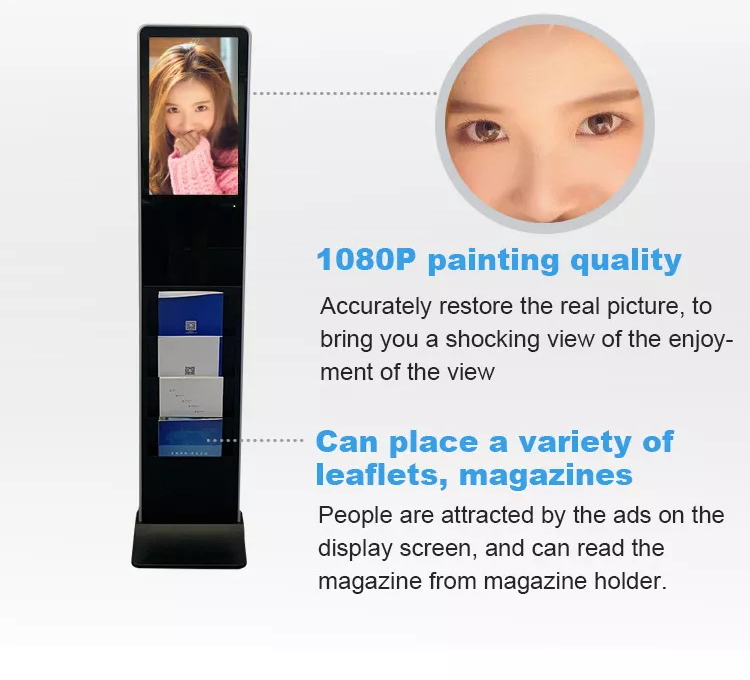

Sharp 1080p panel above, take-away literature rack below — attention and conversion in one unit.

Key Capabilities

Six reasons venues pick the combined totem over a screen and a separate leaflet stand.

01 · Dual Purpose

Screen + Brochure Rack in One Footprint

One 360 mm-wide column replaces a digital sign and a literature stand. Visitors watch the ad, then take the matching brochure — the shortest path from attention to action.

02 · Display

A-Grade 1080p IPS Panel

21.5" Full-HD IPS with 89° viewing angles renders photos and video accurately from any approach direction. Tempered glass protects the front in public spaces.

03 · Content

Split Screen & Remote Updates

Intelligent split-screen mode mixes video, images and scrolling text in zones. Update content remotely over WiFi or Ethernet, or locally via USB — no ladder, no downtime.

04 · Automation

Timer Switch — Runs Itself

Schedule daily power-on and power-off to match opening hours. The totem wakes up before your first visitor and sleeps after the last — saving energy without anyone touching it.

05 · Platform

Android or Linux, Your Choice

Rockchip RK3566–RK3588 options with Android 13/14 or Linux. Runs standard signage APKs and kiosk browsers; touch (10-point capacitive) available for interactive directories.

06 · Customization

Two Finishes · OEM / ODM Ready

Matte black or pearl white as standard; custom colors, logo silk-screen, shelf count and pre-installed software available for OEM orders with 24-hour quotation response.

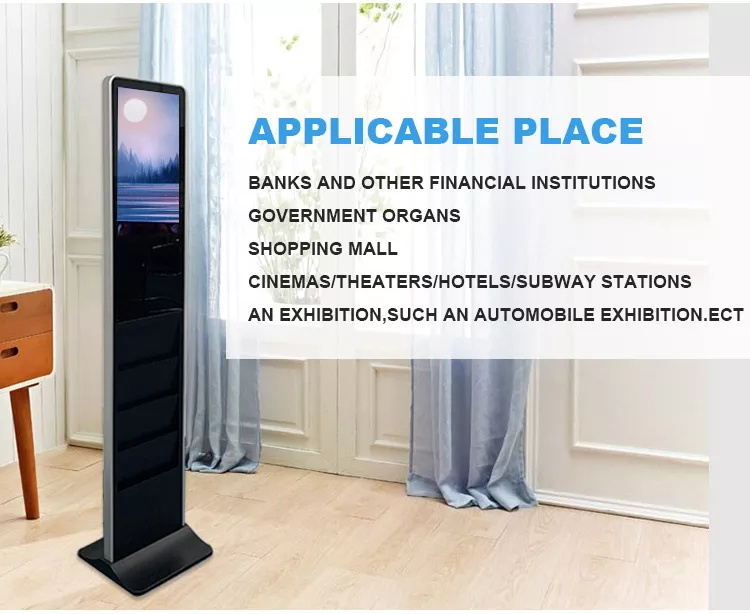

In place at a reception area — the slim 40 mm profile fits where furniture can't.

Where It Fits

Anywhere people wait, browse or queue — and printed material still matters.

Hotel Lobby
Local guides, spa menus and event flyers under a looping promo reel.
Bank & Financial Branch
Rate announcements on screen, product leaflets in the rack below.
Clinic & Waiting Room
Health education videos with take-home information pamphlets.
Car Showroom & Exhibition
Model videos beside spec sheets and price lists visitors take away.
Real Estate Sales Center
Property tours on screen, floor plans and brochures in hand.
Cinema · Theater · Transit
Programs and schedules on screen, printed timetables to go.

Build Details

A public-space product lives or dies on its housing — here is what's behind the glass.

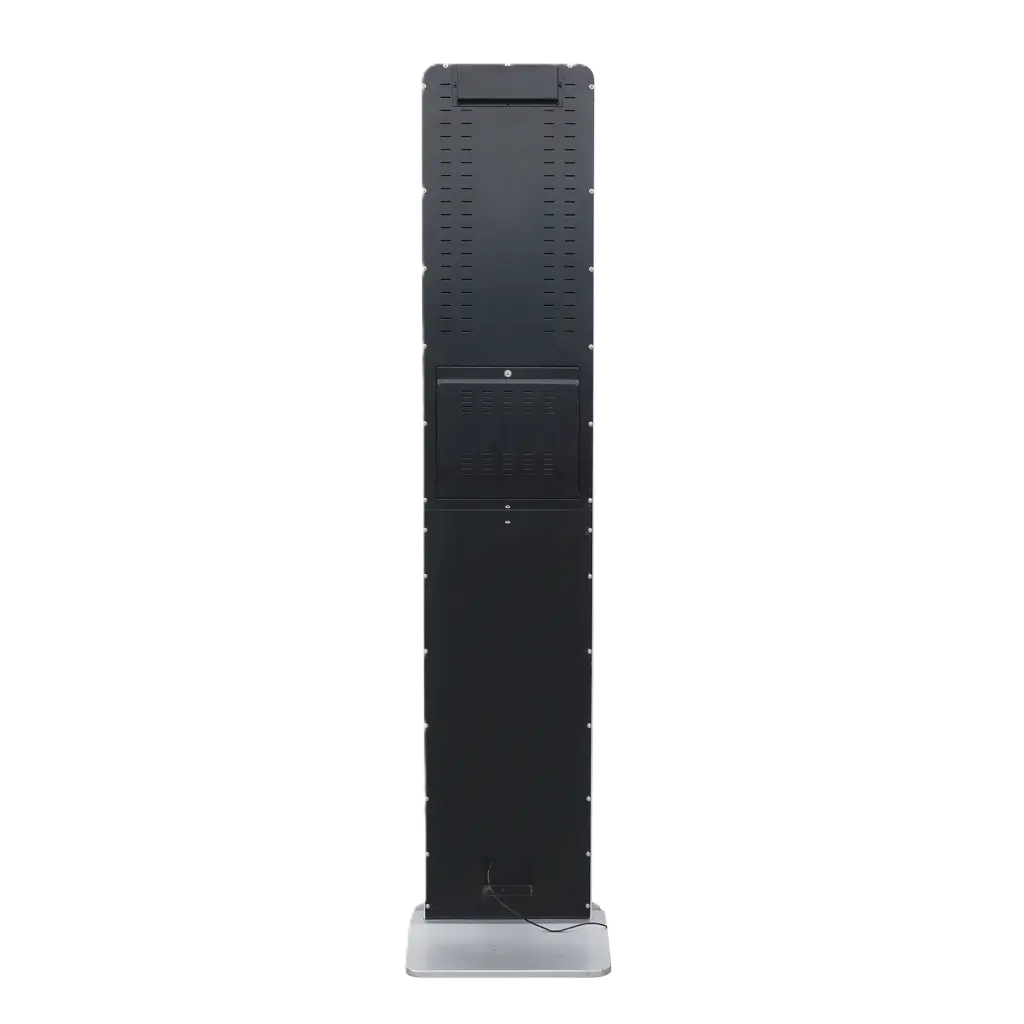

Rear: ventilation slots, lockable service panel, low cable exit.
Tempered Glass Front
The display window is protected by tempered glass — fingerprint-wipeable and scratch-resistant in daily public contact.
Steel Column, 40 mm Thin
Powder-coated steel body keeps the totem rigid at only 40 mm depth and 17.6 kg — slim enough for narrow corridors and doorway sightlines.
Weighted Base Plate
The low flat base keeps the center of gravity down — stable against bumps without bolting to the floor.
Serviceable Rear Panel
Ventilated, screw-secured rear access to the mainboard and cabling — maintenance without moving the unit.

Technical Specifications

Reference values for the standard 21.5" configuration. All fields customizable for OEM orders.

Screen Size21.5" LCD IPS (A-grade panel)
Resolution1920 × 1080 (16:9)
Brightness / Contrast250 cd/m² · 1000 : 1
Viewing Angle89° all directions
Touch10-point capacitive (touch or non-touch versions available)
Front ProtectionTempered glass surface
Literature Rack4-tier brochure / magazine / newspaper holder (A4-friendly)
Operating SystemAndroid 13 · Android 14 · Linux (custom)
ProcessorRockchip RK3566 / RK3568 / RK3576 / RK3588
Memory / Storage2 / 4 / 8 GB RAM · 16 / 32 / 64 GB storage
NetworkWiFi 802.11 b/g/n · Gigabit Ethernet (10/100/1000 M) with PoE · Bluetooth 4.0
Ports2 × USB Host · RJ45 · DC jack
AudioBuilt-in 2 × 3 W speakers
Camera / MicrophoneOptional
Media SupportVideo: MPEG-1/2/4, H.264, WMV, MKV, TS, FLV · Audio: MP3, WMA, AAC · Image: JPG, PNG, GIF
Software FeaturesIntelligent split screen · timer on/off switch · remote content management · multi-language
FinishesMatte black · pearl white (custom colors for OEM)
Dimensions1700.5 × 360 × 40 mm
Weight17.6 kg (net) · 20 kg (boxed) · 50 kg (wooden export crate)
Power110 – 220 V adapter
Operating Temperature0 – 40 °C
CertificationCE compliant
Need more capacity? A wide-body variant with dual brochure columns and a larger screen is available on request.

Sourcing From EELLNET

A decade of signage manufacturing, built around B2B buyers who value predictability.

10+
Years in display manufacturing
42+
Countries served
24 h
Quote response time
CE
Certified for export

Frequently Asked Questions

What size brochures fit in the rack?
The four tiers are sized for standard A4 brochures and magazines; A5 leaflets, tri-folds and newspapers also fit. For OEM orders the shelf count and pocket depth can be adjusted to your literature format.
How do I update the screen content?
Three ways: remotely over WiFi/Ethernet through a content-management app, locally via USB stick, or on a schedule using the built-in playlist and timer functions. The intelligent split-screen mode lets you combine a video zone with image and scrolling-text zones.
Is it touch or non-touch?
Both versions are available. Non-touch suits pure advertising loops; the 10-point capacitive touch version turns the totem into an interactive directory or check-in point while still holding printed literature.
Can it run unattended all week?
Yes. Set the timer switch once and the totem powers itself on before opening and off after closing, seven days a week. Components are rated for continuous commercial duty within 0–40 °C.
What OEM/ODM options are available?
Custom chassis color, logo silk-screen, shelf configuration, screen size, Android/Linux image with your pre-installed app, and retail packaging. Contact us with your quantity for MOQ and lead time — quotes within 24 hours.

Request a quote in 24 hours

Tell us your finish (black / white), touch or non-touch, CPU configuration and quantity — we'll respond with pricing, lead time and sample options.
