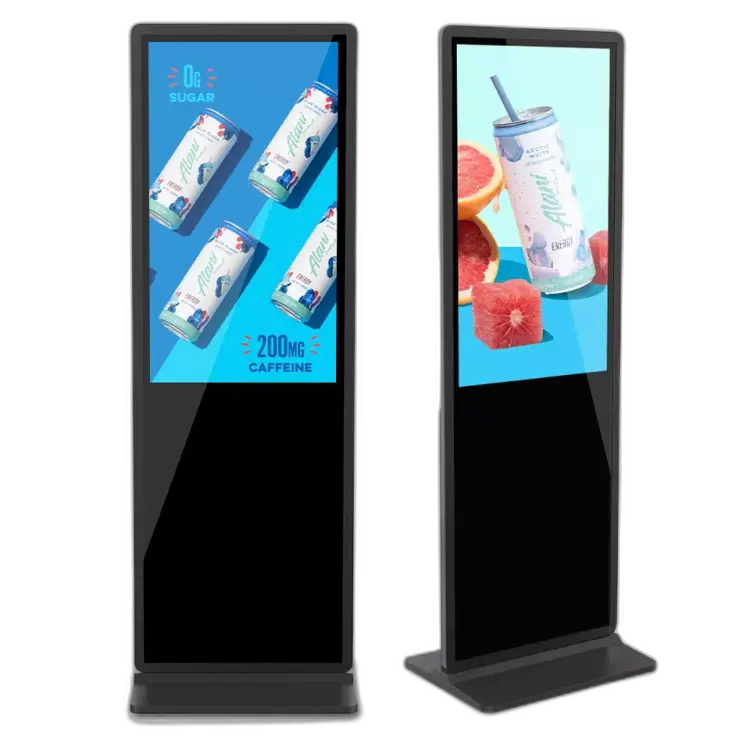

Floor Standing Touch Screen LCD Indoor Android Interactive Advertising Player

The interactive vertical kiosk for lobbies, retail floors and high-traffic waiting areas.

Share

https://www.eellnet.com/web/image/product.template/44/image_1920?unique=b846f3d
Key Features & Benefits

  • Large Interactive Display
  • Android-Powered Intelligence
  • Ultra HD Resolution
  • Multi-Touch Capability
  • Robust Construction

¥ 0.00 0.0 CNY ¥ 0.00

  • size
  • Configuration

This combination does not exist.

Contact Us
Indoor Digital Signage · Floor-Standing Kiosk

An interactive vertical kiosk for lobbies, retail floors and high-traffic waiting areas. Available in 32", 43", 55" and 65" portrait format — Rockchip-powered Android 13/14 or Linux inside, 10-point capacitive touch, PoE-ready, plug-and-play indoor deployment.

Floor standing Android touch kiosk front and rear view with sample beverage content
Front & rear view — 43" portrait kiosk shown with sample retail content.
Format
Portrait Kiosk
Free-standing
Panel
1920 × 1080
IPS · 350 nit
Touch
10-Point
Capacitive
Install
Plug & Play
PoE optional

Overview

Built for indoor commercial spaces where interaction matters — a customer walks up, taps, gets information, then walks on.

The floor-standing kiosk sits in portrait orientation on a weighted base, making it visible over crowds and stable in high-footfall environments. The 10-point capacitive touch layer supports natural gestures, and the Rockchip Android platform runs any modern signage, wayfinding or self-service application. One CAT-6 cable via PoE delivers both power and network — no wall socket needed near the unit, no visible cabling, no electrician on install day.

Key Capabilities

What separates this from a wall-mount signage panel with a stand tacked on.

01 · Form Factor

Portrait Kiosk, Weighted Base

Free-standing vertical layout designed for lobbies, retail floors and waiting areas. Low center of gravity keeps it stable against accidental knocks.

02 · Interaction

10-Point Capacitive Touch

Retail-grade multi-touch glass. Pinch, zoom, drag and sign with the same responsiveness customers expect from their phones.

03 · Platform

Open Android or Linux

Runs your own APK, kiosk browser or wayfinding software. No forced launcher, no per-device subscription — you keep control of the customer experience.

04 · Power & Network

PoE Ready — One Cable

IEEE 802.3at/af Power over Ethernet delivers power and network on a single CAT-6 cable. Clean install, centralized reboot from your switch.

05 · Display

Full-HD IPS at 350 nit

Bright enough for well-lit shopping malls and lobbies. Wide 89° viewing angles keep the image accurate from any approach direction.

06 · Customization

OEM / ODM Available

Custom bezel color, logo, boot animation, retail packaging and pre-flashed image. MOQ-friendly with 24-hour quotation response.

Where It Fits

Common indoor deployments for the floor-standing form factor.

Bank & Financial Lobby
Queue tickets, product promotion, service directory.
Hospital & Clinic
Patient check-in, wayfinding, health information.
Retail & Mall
Product catalog, brand showcase, promotional content.
Hotel & Airport Lounge
Interactive directory, flight info, concierge services.
Corporate Reception
Visitor check-in, floor guide, meeting directory.
Exhibition & Museum
Interactive exhibits, multilingual information kiosks.

Design Details

Slim profile, weighted base, service-accessible rear panel.

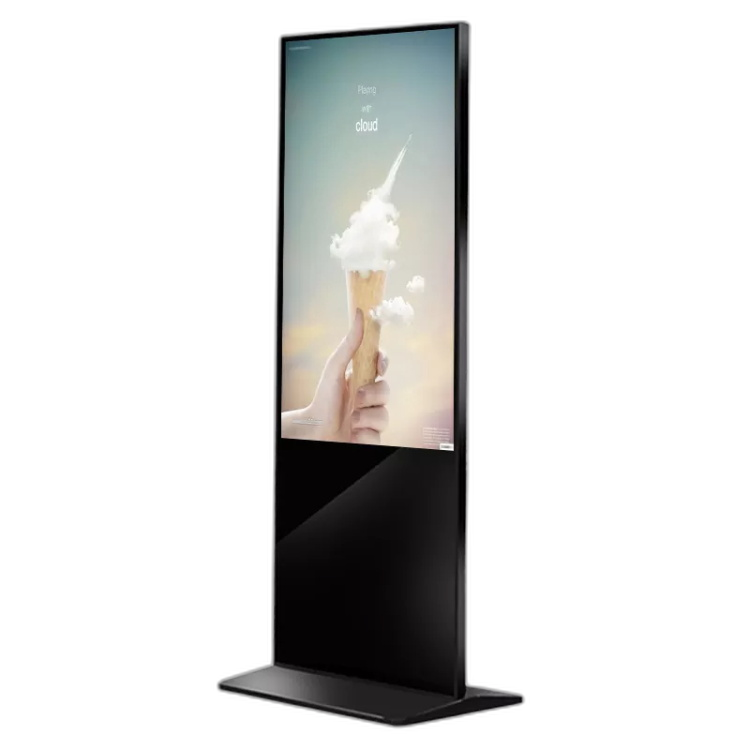

Front view of portrait kiosk with full-screen digital signage content
Front view — full-screen portrait content.

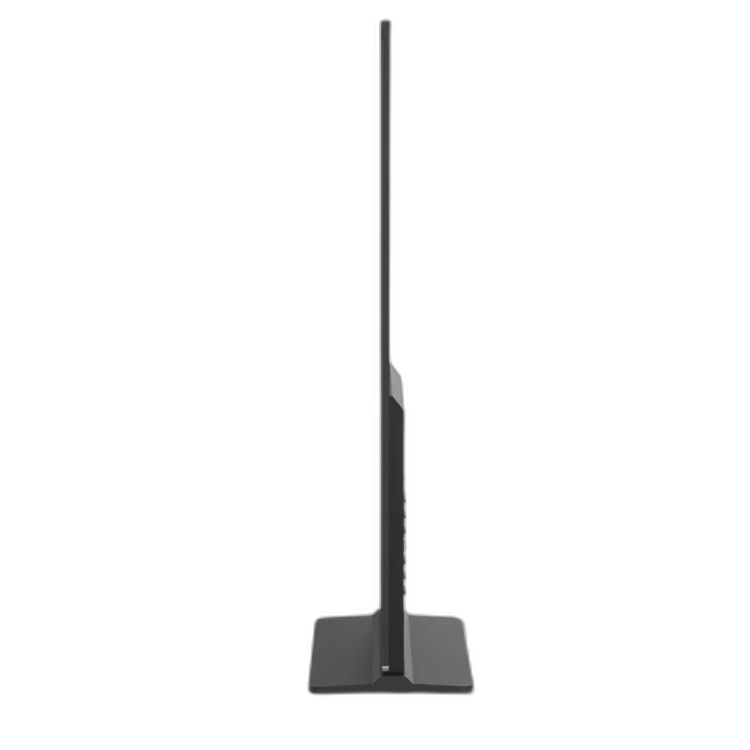

Ultra-slim side profile showing 53 mm cabinet depth
Side profile — 53 mm slim cabinet.

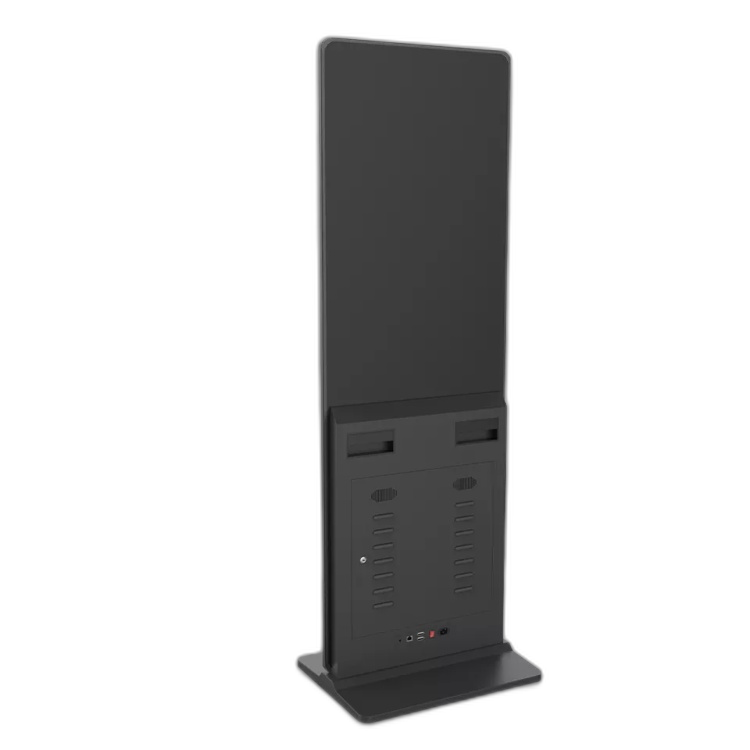

Rear panel with I/O ports and lockable service access door
Rear I/O panel & service door.
Note on Software
This product is hardware only. The device ships with clean Android 13 / 14 (or Linux on request) and supports any standard APK, PWA or kiosk browser. You bring your own signage or wayfinding software; we can also pre-flash your image at the factory for OEM orders.

Configuration Options

Three pre-defined bundles, or fully custom BOM on request.

Entry
RK3566
2 GB RAM · 16 GB Storage
Basic signage & single-app kiosk
1080p video playback
Suitable for static content
RECOMMENDED
Standard
RK3576S
4 GB RAM · 32 GB Storage
Interactive wayfinding & catalogs
Smooth touch response
Sweet spot for most deployments
Performance
RK3588
8 GB RAM · 64 GB Storage
Rich media, 3D content, AI apps
Multi-window & camera analytics
For demanding custom apps

Finish Options

Standard black chassis for most commercial installations; champagne / warm neutral available for premium retail and hospitality settings.

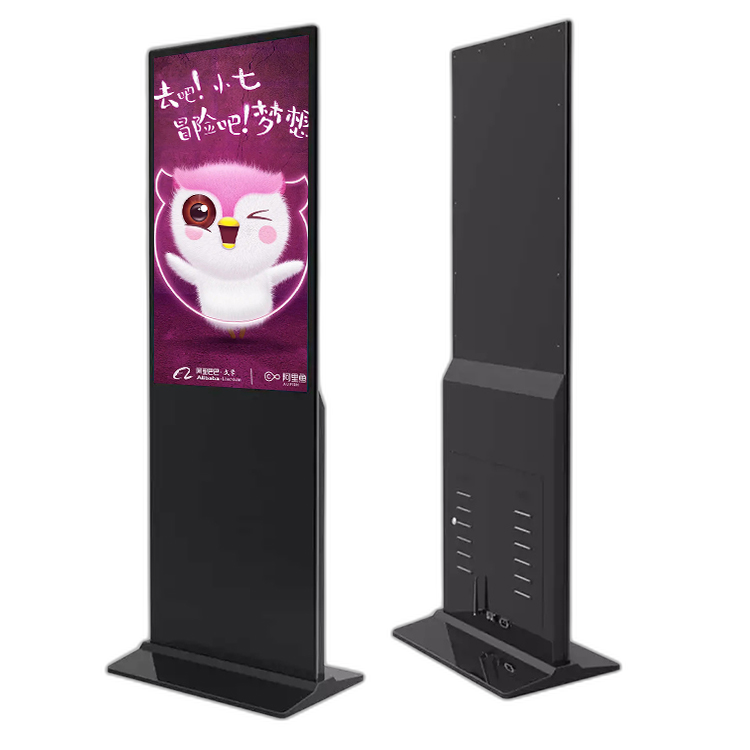

Matte black chassis finish, standard for malls, banks and offices
Matte Black
Standard finish · malls, banks, hospitals, offices.
Champagne finish floor standing kiosk for boutique retail and hotels
Champagne
Premium finish · boutique retail, hotels, showrooms.

Technical Specifications

Reference values for the 43" portrait configuration. All fields customizable on request.

Screen Sizes32" · 43" · 55" · 65"
Panel TypeIPS LCD, 16:9 portrait orientation
Resolution1920 × 1080 (Full HD)
Brightness350 cd/m²
Contrast Ratio700 : 1
Viewing Angle89° / 89° / 89° / 89°
Touch Technology10-point capacitive multi-touch
Operating SystemAndroid 13 · Android 14 · Linux (custom)
ProcessorRockchip RK3566 / RK3568 / RK3576 / RK3588
Memory2 GB / 4 GB / 8 GB
Storage16 GB / 32 GB / 64 GB + TF card up to 32 GB
Network10/100 M Ethernet with PoE (802.3at/af), WiFi 802.11 b/g/n
BluetoothBluetooth 4.0
PortsUSB 3.0 · USB 2.0 · RJ45 · TF card · 3.5 mm audio · DC in
AudioBuilt-in 2 × 5 W stereo speakers
Camera / MicOptional
Media SupportVideo: MPEG-1/2/4, H.263/264, VC1, RV up to 1080p · Audio: MP3, WMA, AAC · Image: JPEG
Dimensions1785 × 583 × 53 mm
Weight36.3 kg (net) · 52 kg (with wooden crate)
Power110 – 220 V AC · PoE 802.3at/af available
Operating Temperature0 – 40 °C
CertificationCE compliant
Warranty1 year standard hardware coverage

Sourcing From EELLNET

A decade of touch-signage manufacturing, built around B2B customers who value predictability.

10+
Years in touch signage
42+
Countries served
24 h
Quote response time
CE
Certified for export

Frequently Asked Questions

Does this include signage software?
No. The device is hardware only, shipped with clean Android 13 / 14 or Linux. You install your own signage, wayfinding or kiosk software, or ask us to pre-flash your image at the factory for OEM orders.
Can it work in landscape orientation?
The standard chassis is designed for portrait floor-standing deployment. A landscape variant is available on OEM request — contact us with your quantity for a quotation.
Is the 350 nit panel bright enough for a shopping mall?
Yes — 350 cd/m² is the standard for indoor commercial signage and reads clearly in shopping malls, lobbies and reception areas. For semi-outdoor or direct-sunlight locations, please ask about our high-brightness (700 nit+) variants instead.
What is the minimum order quantity?
Standard sizes ship from as few as 3 units. OEM-customized units typically start at 20–30 units — contact us for exact terms on your target size and specification.
How does the wooden crate shipping work?
Each unit ships in an individual wooden crate (1920 × 750 × 250 mm, 52 kg gross) rated for international freight. This adds cost but drops damage-in-transit incidents to near zero, which is critical for 36 kg floor-standing units.

Request a quote in 24 hours

Tell us screen size, SoC configuration and quantity — we'll respond with pricing, lead time and sample options.
