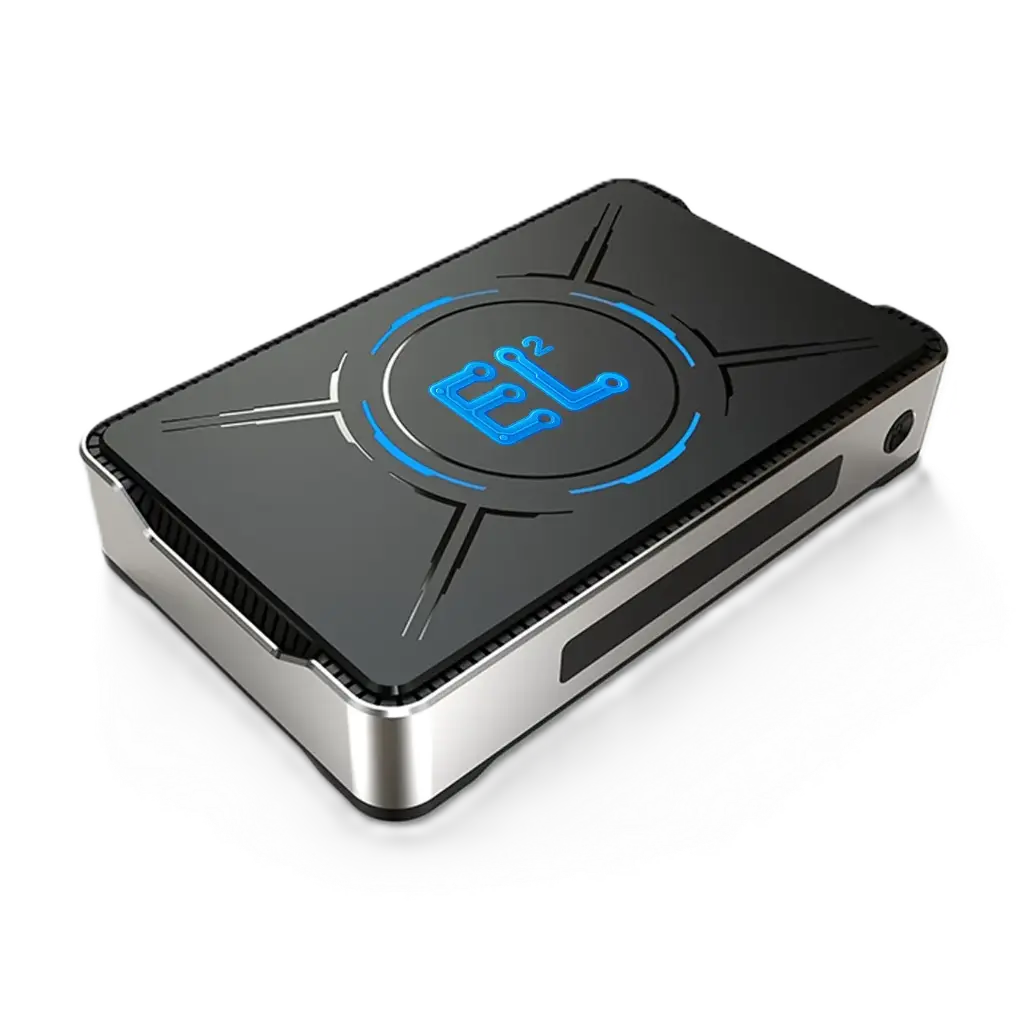

A016 Android 14 TV Box, Amlogic S905X5, 4K, WiFi 6
A016 Android 14 TV box powered by Amlogic S905X5 with 4GB RAM, 64GB storage, 4K@60fps AV1 decoding, WiFi 6, BT 5.x and dual Gigabit Ethernet.
Highlights
- Amlogic S905X5 quad-core ARMv9.0 Cortex-A510 CPU with Mali-G310 V5 GPU and 3.2–4 TOPS NPU
- 4GB RAM + 64GB storage (2GB/8GB RAM and 32GB/128GB storage optional)
- 4K@60fps hardware decoding of H.266, AV1, VP9, H.265, H.264 and more
- Low-latency H.265/H.264 video encoding up to 4K@60fps
- Android 14 with multi-language support
- Dual-band WiFi 6 (2.4GHz/5GHz) with 2T2R antennas, plus Bluetooth 5.x
- Dual Gigabit Ethernet, USB 3.0, 2× USB 2.0, Type-C, optical audio and Micro SD slot
- Plastic and metal body in black and silver, 160×100×31mm
Specifications
| Parameter | Value |
|---|---|
| Model | A016 |
| CPU | Amlogic S905X5; Quad-core ARMv9.0 Cortex-A510 |
| GPU | ARM Mali-G310 V5; OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.2 support |
| NPU | Neural network accelerator (NNA) with Tensor programmable engine (TPU) architecture; 3.2–4 TOPS |
| RAM | 4GB (2GB/8GB optional) |
| Storage | 64GB (32GB/64GB/128GB optional) |
| External Storage | USB storage devices; Micro SD card |
| Operating System | Android 14 |
| Language | Multi-language |
| Video Decoding (4K@60fps) | H.266 VVC Main 10@L5.2; AV1 MP-10@L5.2; VP9 Profile-2; H.265 HEVC MP-10@L5.2; AVS2 P2; AVS3 Phase1; H.264 AVC HP@L5.2 |
| Video Decoding (1080P@60fps) | MPEG-4 ASP@L5; WMV/VC-1 SP/MP/AP; AVS-P16(AVS+)/AVS-P2 JiZhun Profile; MPEG-2 MP/HL; MPEG-1 MP/HL |
| Other Video Features | Multi-language, multi-format subtitles; MJPEG/JPEG unlimited pixel resolution decoding; JPEG thumbnail, scaling, rotation and transition effects |
| Video Encoding | H.265 up to 4K@60fps with low latency; H.264 up to 4K@60fps with low latency; independent JPEG and H.264 encoder with configurable performance/bit-rate |
| Audio | Serial audio interface; SPDIF; audio CODEC |
| Image Formats | HD JPEG, BMP, GIF, PNG, TIF |
| Wi-Fi | IEEE 802.11 b/g/n/ac/ax; 2.4GHz/5GHz WiFi 6; 2T2R antennas |
| Bluetooth | BT 5.x |
| Power Input | DC IN 12V/2A |
| Button | Power ON/OFF ×1 |
| Audio Output | Audio ×1; Optical SPDIF ×1 |
| Video Output | HDMI 4K×2K UHD output; HDMI 1.4/2.1b |
| IR Receiver | On-board remote receiver |
| Micro SD | Supported |
| USB Ports | USB 3.0 Type-A ×1; USB 2.0 Type-A ×2; Type-C ×1 |
| Ethernet | Gigabit Ethernet ×2 (100M optional) |
| Body Material | Plastic + metal |
| Color | Black + silver |
| Dimensions | 160×100×31mm |
| Package Contents | User manual ×1; remote control ×1; HDMI cable ×1; power adapter ×1 |
| Gift Box Size | 186×134×83mm |
| Gift Box Gross Weight | 0.71kg |
| Carton Size | 435×390×285mm |
| Quantity per Carton | 20 pcs |
| Carton Gross Weight | 15kg |
Use Cases
- Living room entertainment: stream 4K movies and shows on your TV
- Legacy TV upgrade: add Android apps and online video to a non-smart TV
- Screen mirroring: share videos and photos from phones and tablets on the big screen
- Local media playback: play movies, music and photos from USB 3.0 drives or Micro SD cards
- Hotels and digital signage: wired networking via dual Ethernet ports for stable playback
- Home audio setups: connect an amplifier or soundbar through optical SPDIF output
FAQ
What processor does the A016 use?
It runs on the Amlogic S905X5 quad-core ARMv9.0 Cortex-A510 CPU with an ARM Mali-G310 V5 GPU and an integrated 3.2–4 TOPS NPU.
Are other memory and storage options available?
The standard configuration is 4GB RAM + 64GB storage. RAM is also available in 2GB/8GB, and storage in 32GB/64GB/128GB.
Which 4K video formats are supported?
It decodes H.266 VVC, AV1, VP9, H.265 HEVC, AVS2, AVS3 and H.264 at up to 4K@60fps.
What are the wireless specifications?
It supports dual-band WiFi 6 (IEEE 802.11 b/g/n/ac/ax, 2.4GHz/5GHz) with 2T2R antennas and Bluetooth 5.x.
What ports does it have?
DC 12V power, dual Ethernet, optical SPDIF, HDMI output, Type-C, audio output, 1× USB 3.0, 2× USB 2.0 and a Micro SD slot, plus a front power button.
What is in the box?
The TV box, a power adapter, an HDMI cable, a remote control and a user manual.
Product Details
Key Features at a Glance
The A016 brings together the Amlogic S905X5 chip, Android 14, 4K 60fps video, WiFi 6 and Bluetooth in one fully upgraded 4K smart TV box.
Amlogic S905X5 Chipset
The 6nm Amlogic S905X5 quad-core CPU delivers high performance with ultra-low power consumption, paired with an ARM Mali-G310 V5 GPU, 4GB RAM and 64GB storage.
4K Ultra HD Picture
Enjoy crystal-clear 4K Ultra HD output with HDR10+, rendering every detail with stunning clarity and realism.
AI-SR Smart Video Enhancement
AI-SR smart video technology upgrades low-resolution content to high-quality visuals with resolution upscaling, detail enhancement, frame rate optimization and color restoration.
Ultra-Efficient AV1 Streaming
AV1 decoding offers about 20% better compression than H.265 and 30% better than VP9, keeping high-quality streams smooth even on limited bandwidth.
Android 14
Android 14 is easy to use, supports voice search and opens up a world of content the whole family can enjoy.
Multi-Screen Interaction
Cast videos and photos from phones and tablets to the TV via AirPlay, DLNA or Miracast and share great moments on the big screen.
Dual-Band WiFi 6 and Bluetooth
The dual-band 2.4G & 5G WiFi 6 design supports wider channel bandwidth for faster transfers and a more stable signal, with Bluetooth 5.x for your peripherals.
Ok Google Voice Control
Simply say what you want to find content, play a movie or start your music for effortless smart living.

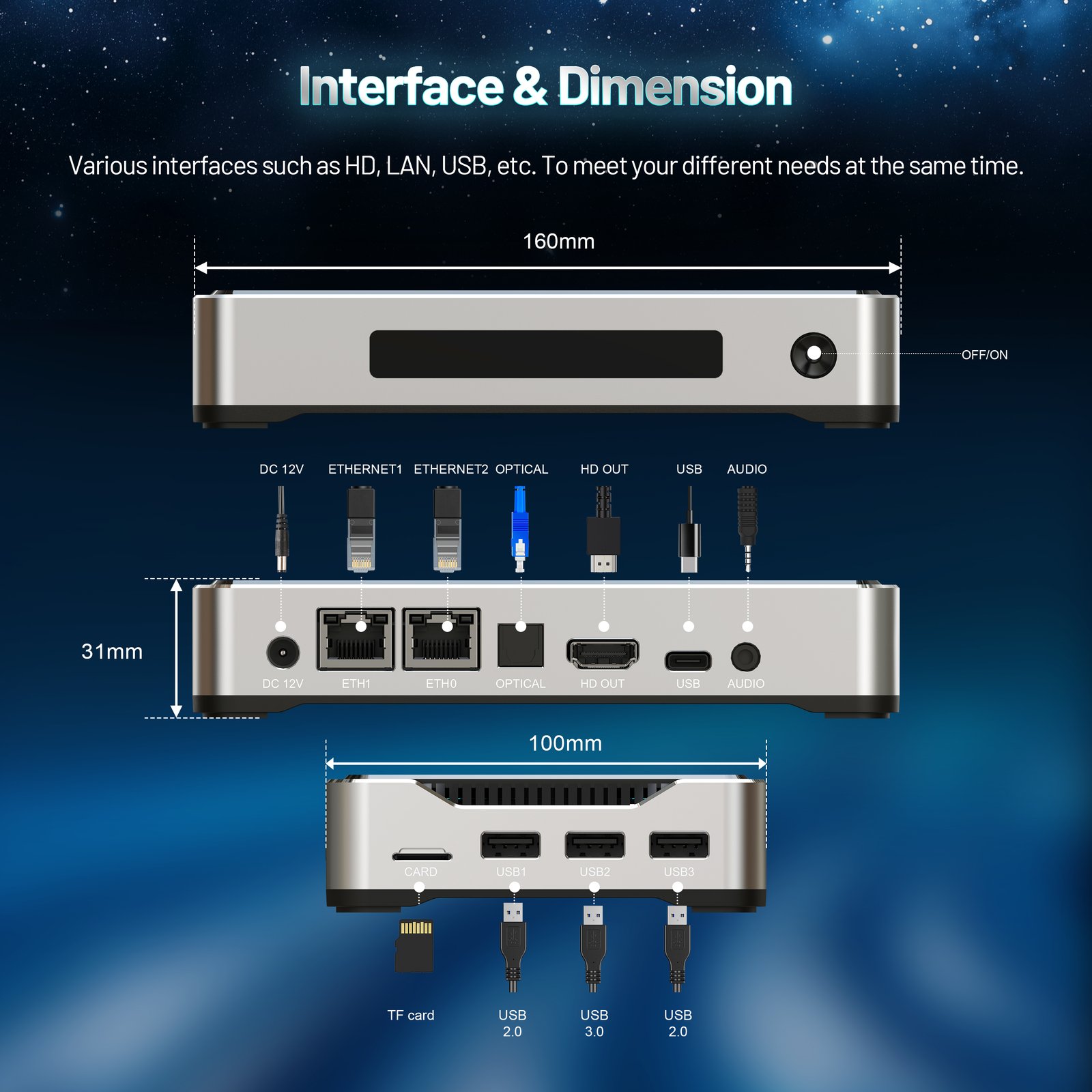

Interfaces and Dimensions

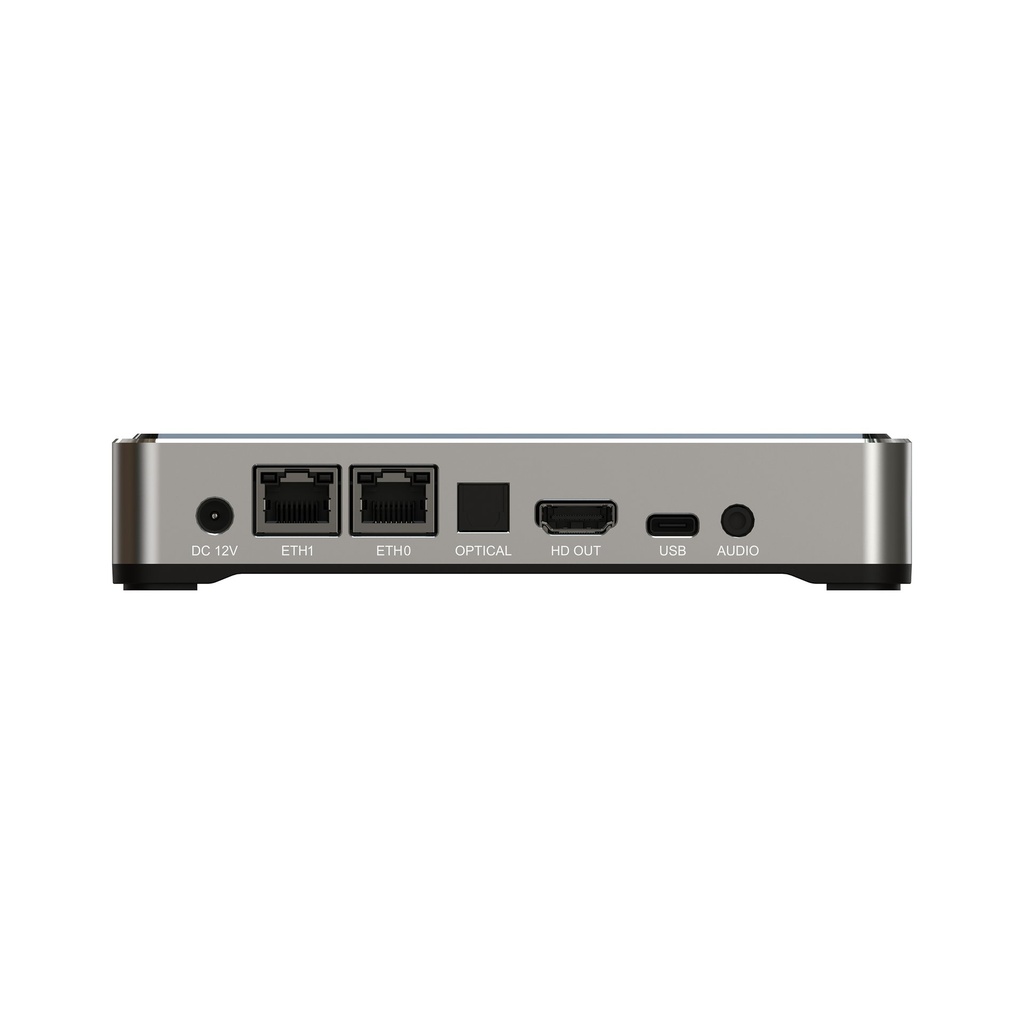

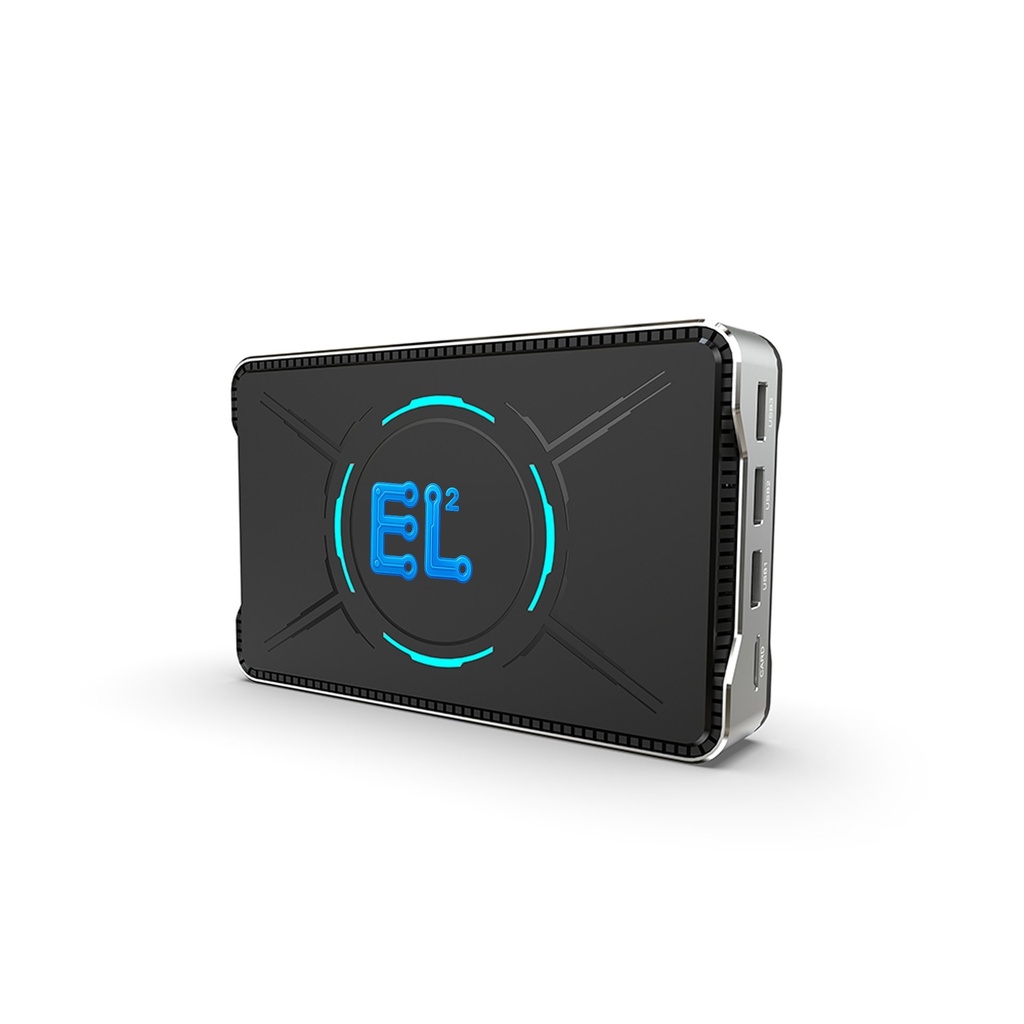

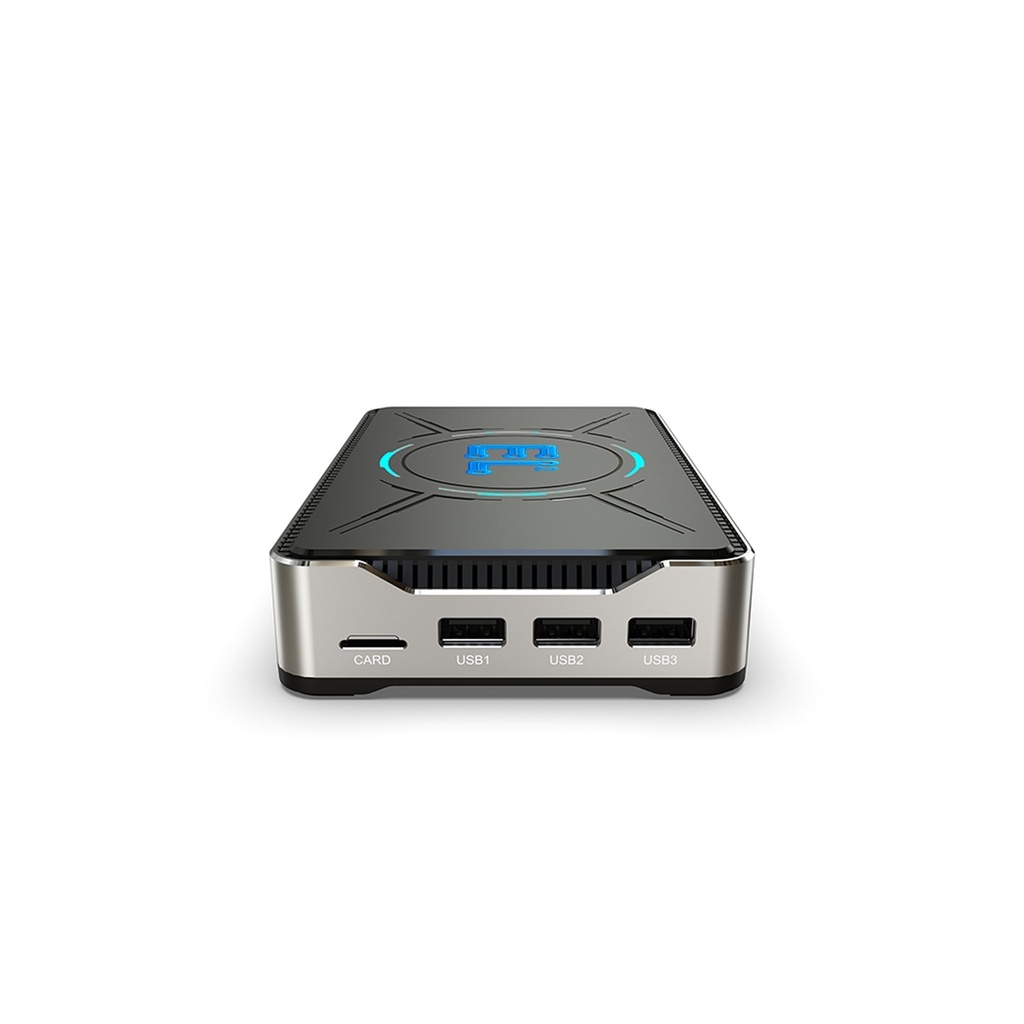

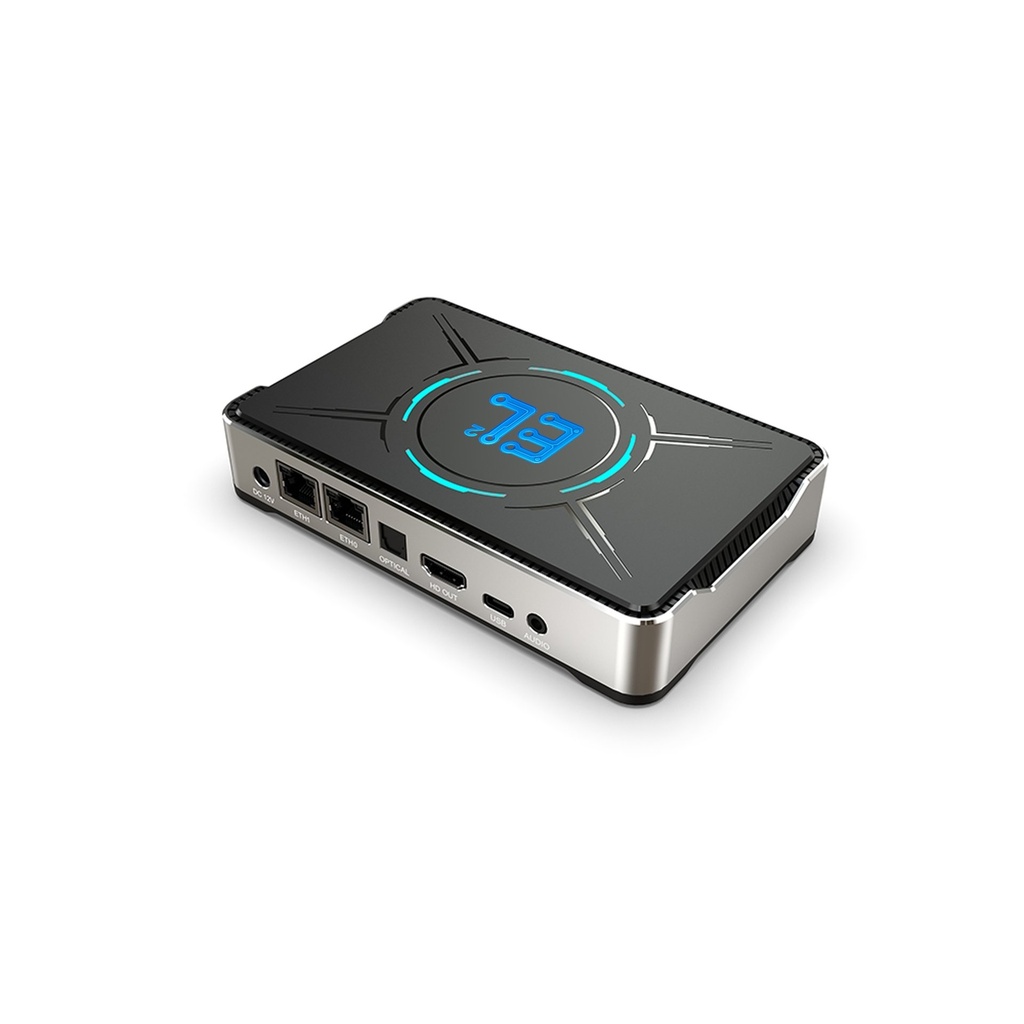

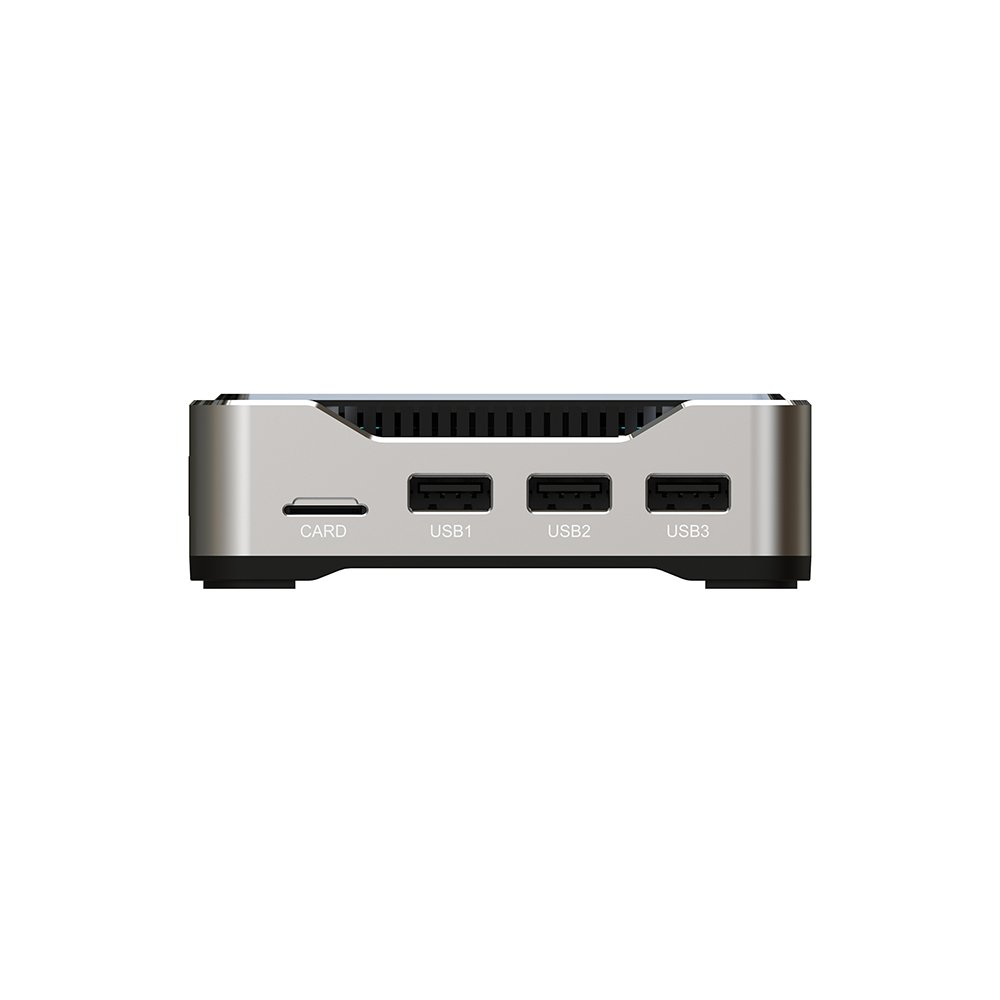

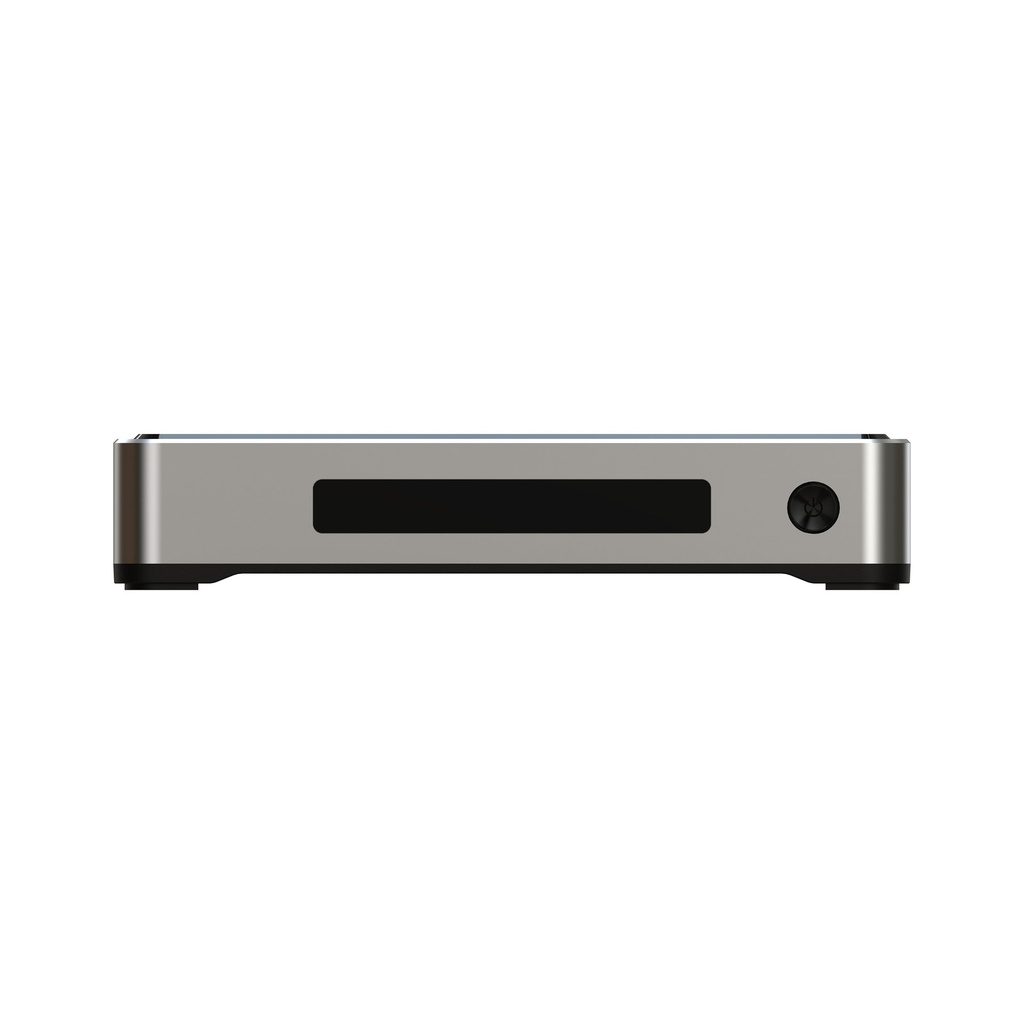

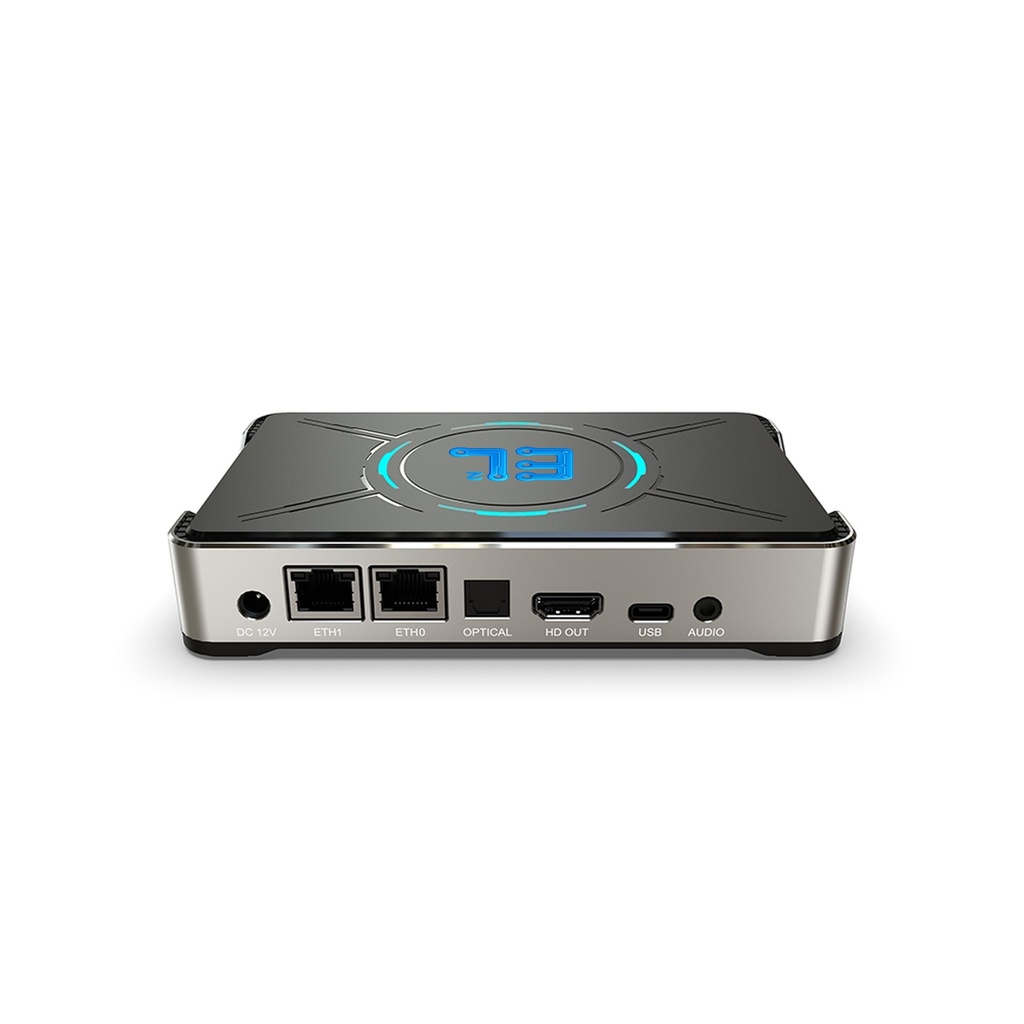

The 160×100×31mm body offers DC 12V, dual Ethernet, optical, HDMI output, Type-C and audio on the rear; a TF card slot, 1× USB 3.0 and 2× USB 2.0 on the side; and a power button on the front.

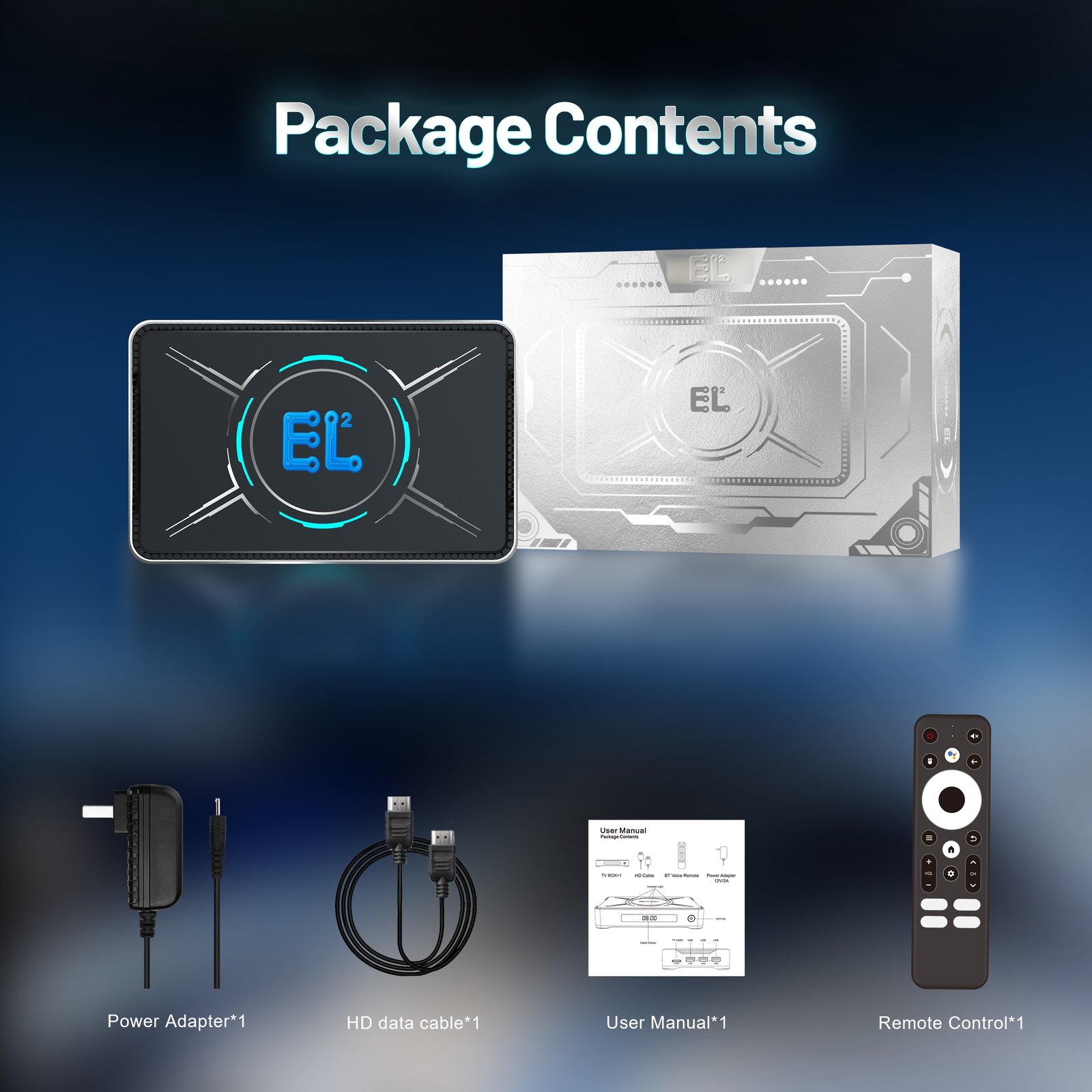

Package Contents
TV box, power adapter ×1, HDMI cable ×1, user manual ×1, remote control ×1.
