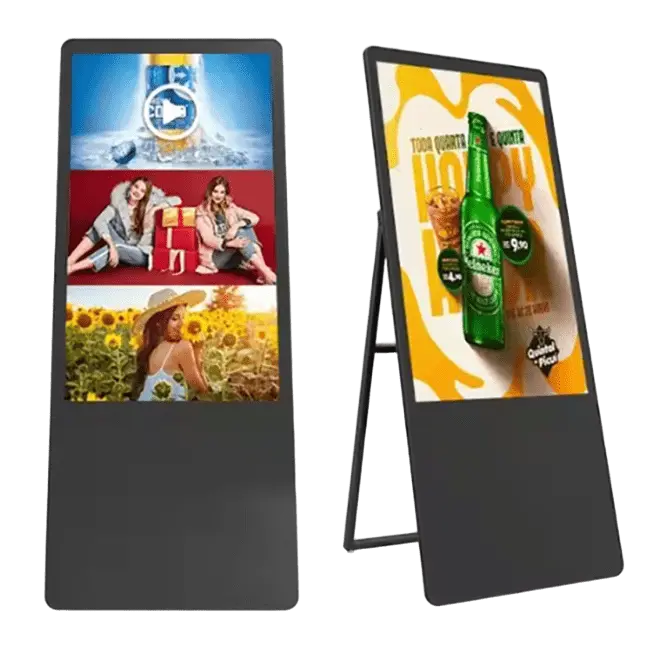

Portable A-Frame Android Digital Signage Kiosk

Slim Portable A-Frame Digital Signage — Wheeled, Foldable, Ready to Deploy

Share

https://www.eellnet.com/web/image/product.template/41/image_1920?unique=e1bcf51
Key Features & Benefits

  • Stunning 4K UHD Display
  • Vertical Floor-Standing Design
  • Android-Powered Smart System
  • Remote Content Management
  • 24/7 Durability

¥ 0.00 0.0 CNY ¥ 0.00

  • size
  • Configuration

This combination does not exist.

Contact Us
Portable Digital Signage · Slim A-Frame Kiosk

A slim vertical Android touch kiosk with a foldable A-frame back stand and wheeled base — portable enough for pop-ups and events, sturdy enough for daily retail duty. 32" to 65" portrait, 700 nit high-brightness IPS, 10-point capacitive touch, lockable rear service door.

Format
A-Frame Slim
Portrait · Portable
Panel
1920 × 1080
IPS · 700 nit
Touch
10-Point
Capacitive
Mobility
Wheeled Base
Move & deploy fast

Overview

A slim, portable alternative to the traditional heavy floor-standing kiosk.

Where a boxed-base kiosk stays put for years, this A-frame model is built to be moved. The panel is slim and light; the back opens into a triangular support with a movable second leg for stability, and small wheels at the base let a single staff member reposition the whole unit. It suits retailers who rotate promotions between store entrances, hotels that redeploy signage for events, restaurants that wheel the menu display outside during opening hours, and exhibitors who need to reset the show floor in minutes.

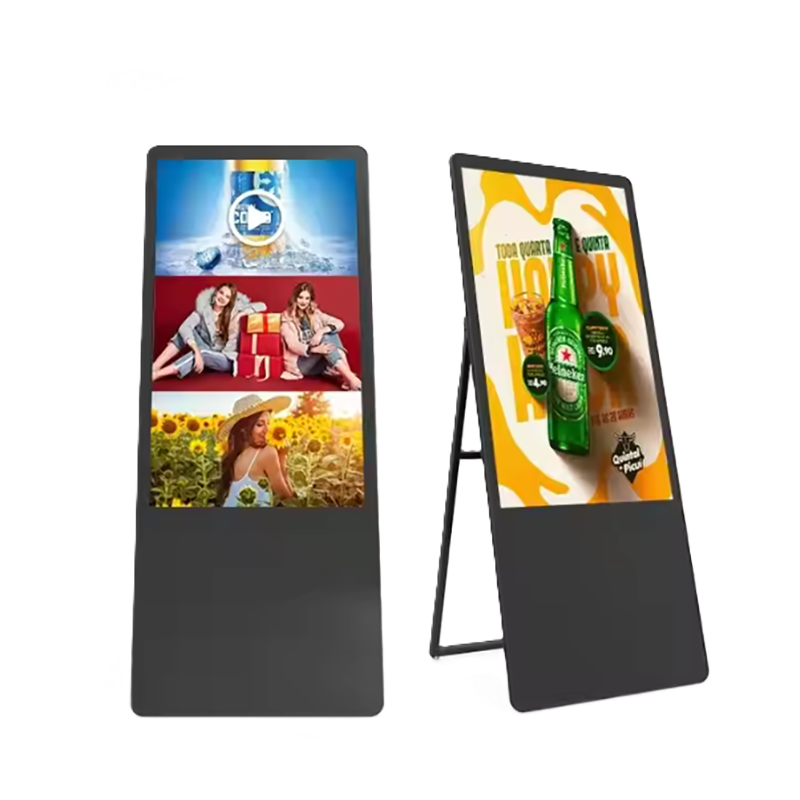

Black A-frame portable signage kiosk shown front and side with sample retail content
Front & side view — slim A-frame design shown with sample retail content.

Key Capabilities

Six design choices that separate this from a wall-mount panel with a stand tacked on.

01 · Form Factor

A-Frame Slim Chassis

78 mm thin panel with a foldable A-frame back leg — light enough to move, stable enough to leave standing all day.

02 · Mobility

Wheeled Base, One-Person Move

Small casters on the rear feet let one staff member reposition the kiosk. No trolley, no two-person lift.

03 · Brightness

700 cd/m² High-Brightness IPS

Twice as bright as a standard 350 nit indoor panel — reads clearly near shop windows, glass entrances and bright event halls.

04 · Interaction

10-Point Capacitive Touch

Retail-grade multi-touch glass. Pinch, zoom, drag and sign with the responsiveness customers expect from their phones.

05 · Security

Lockable Rear Service Door

Rear panel with lockable service door protects the mainboard, power and network from tampering in public spaces.

06 · Customization

OEM / ODM Available

Custom bezel color, logo, boot animation, retail packaging and pre-flashed image. MOQ-friendly with 24-hour quotation response.

Design Details

Two finishes, real-world content examples and the lockable service side.

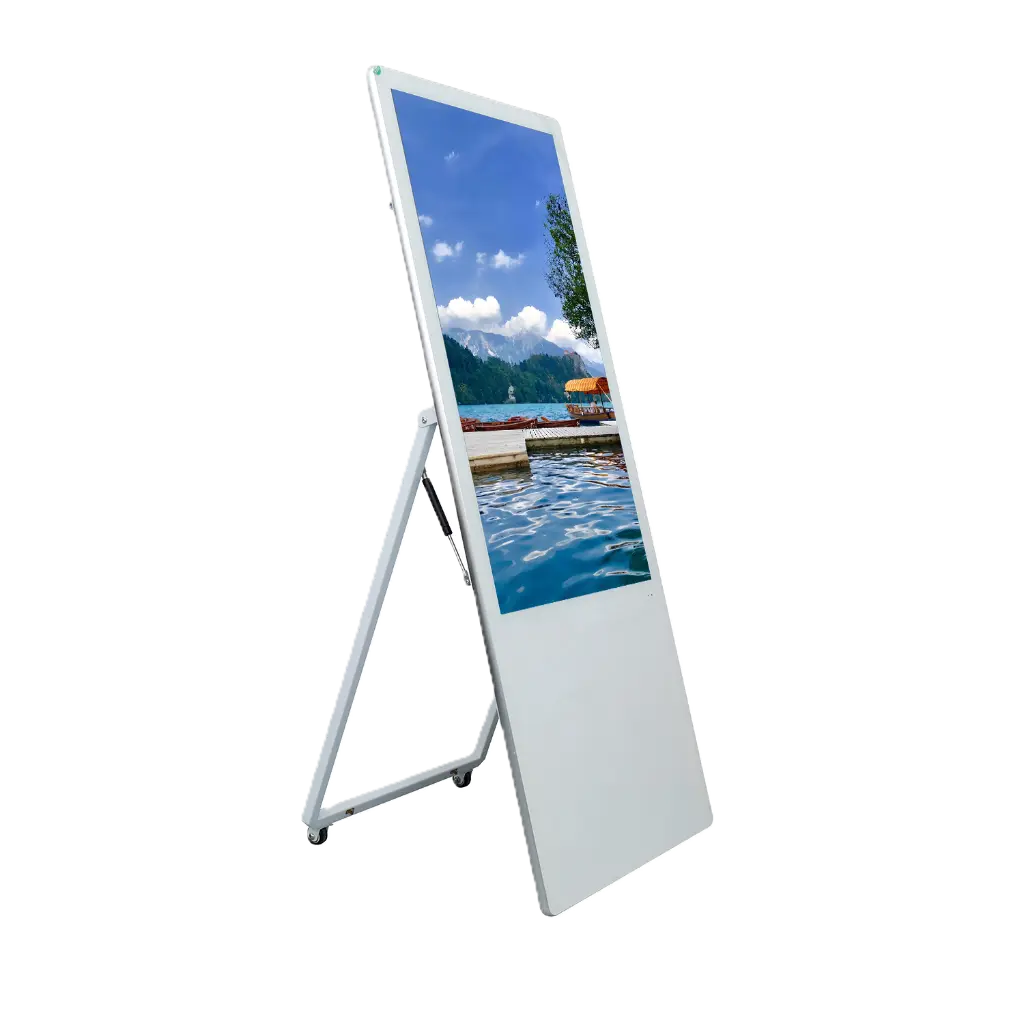

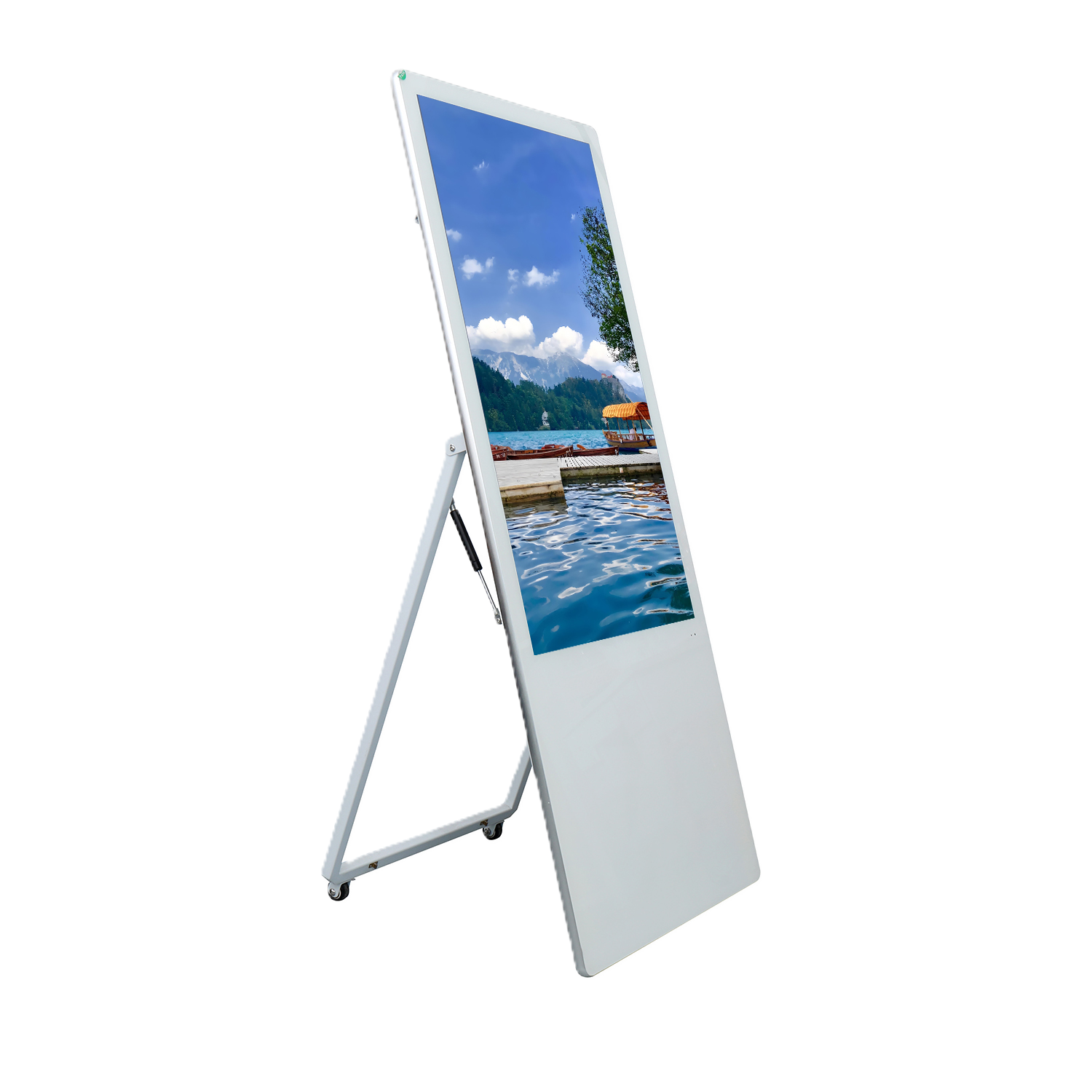

White A-frame kiosk with lake scenery content, front and side view
White finish · front & side view.

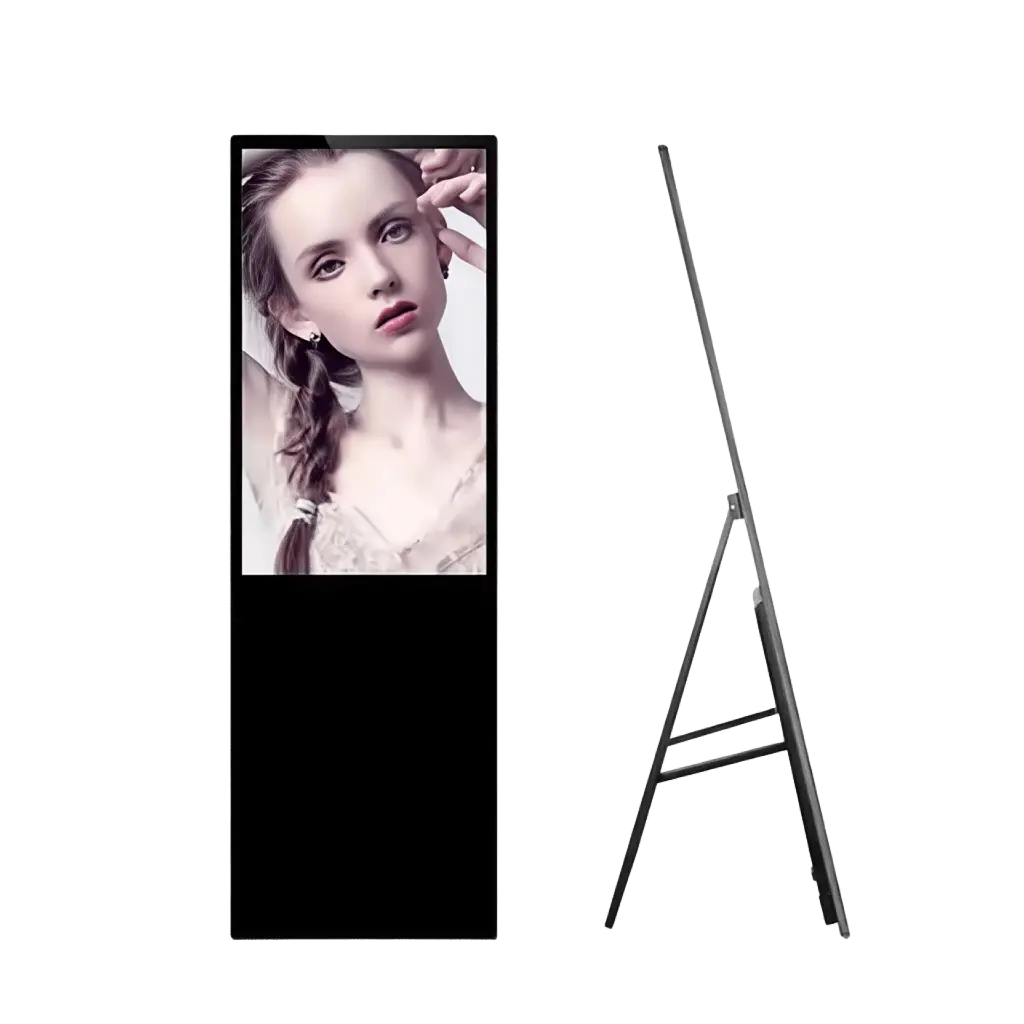

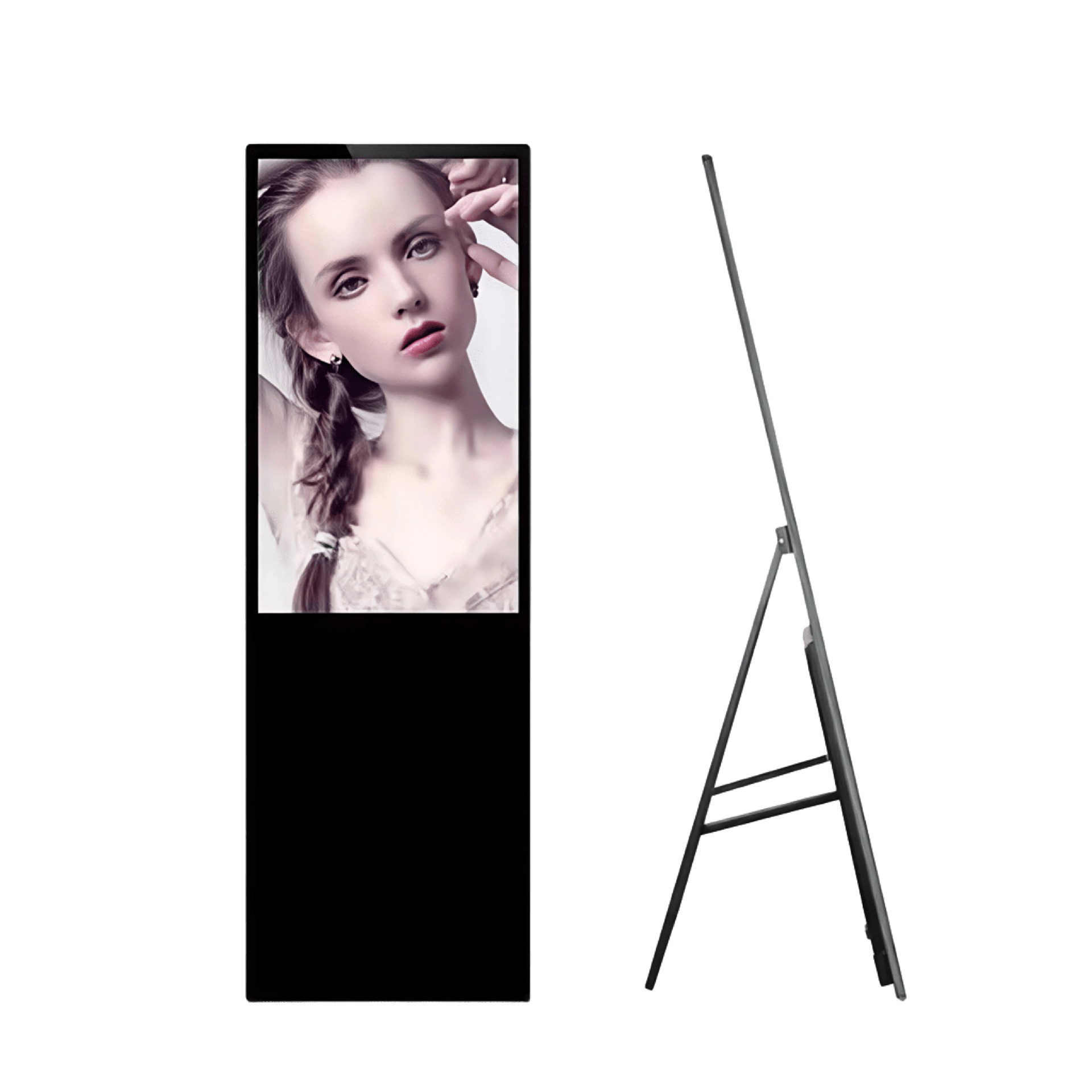

Black A-frame kiosk with portrait content, front and side view
Black finish · front & side view.

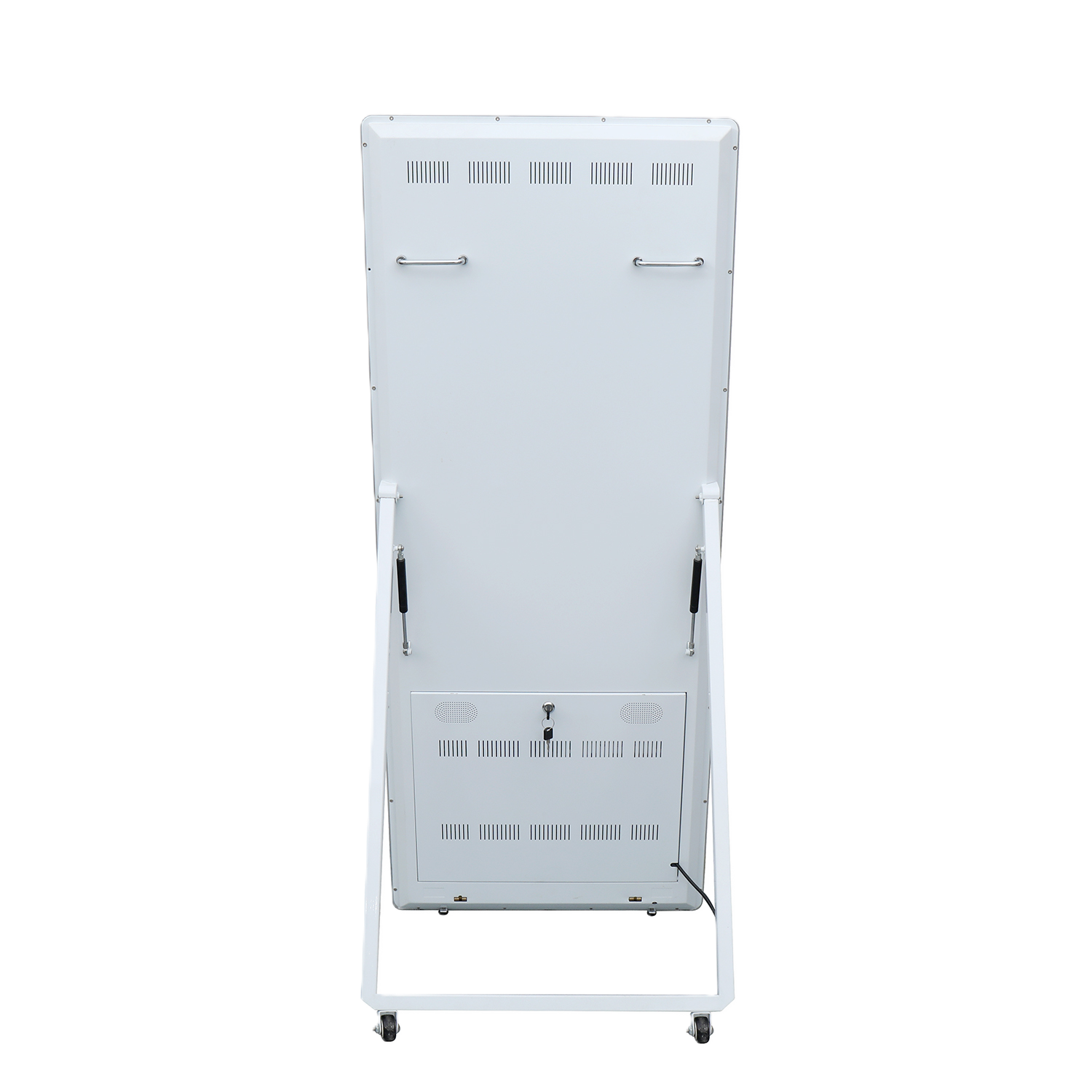

Rear view showing ventilation, lockable service door and wheeled base
Rear panel · lockable service door & wheels.

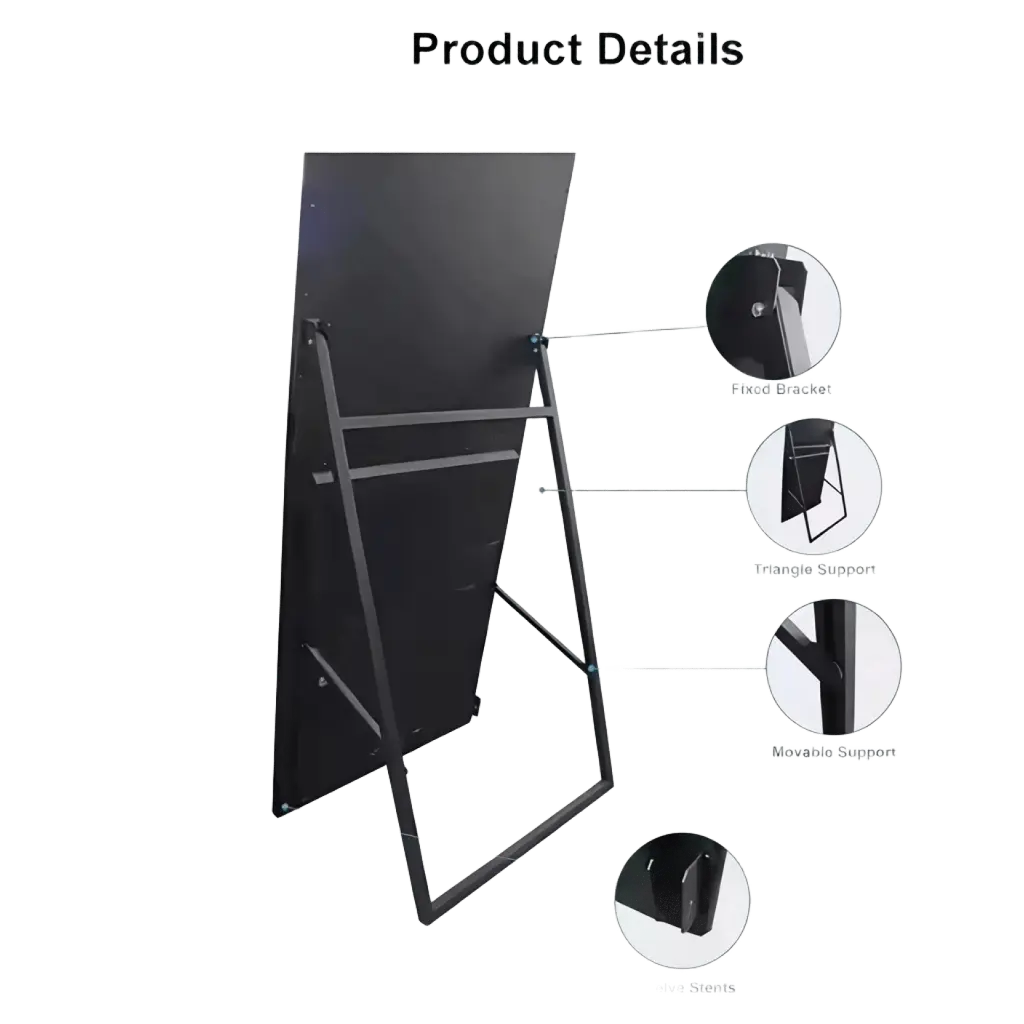

A-Frame Stand Structure

Four engineered components make the difference between a slim kiosk that lasts and one that wobbles.

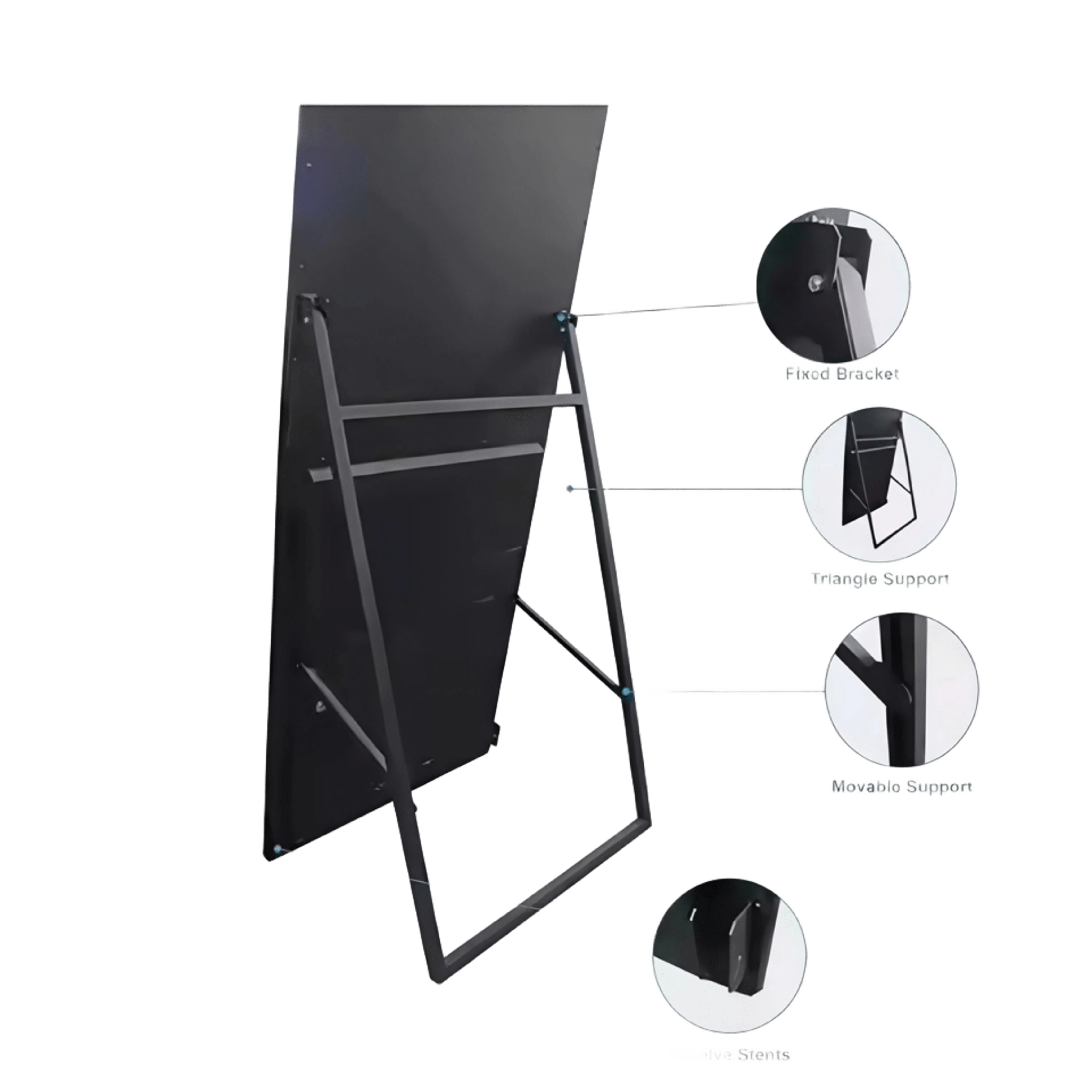

A-frame stand structure callouts: fixed bracket, triangle support, movable support and wheels
Callouts of the four structural components.
Fixed Bracket
Rigid steel joint that anchors the panel to the A-frame — the load-bearing pivot.
Triangle Support
Fixed triangular geometry gives the stand its main stability, even on uneven flooring.
Movable Support
Second leg pivots outward for extra footprint when displayed, folds flat for transport.
Retrieve Stents / Wheels
Small casters at the rear feet let one staff member wheel the unit into position.

Where It Fits

The portable A-frame form factor shines in spaces where signage needs to move.

Retail Storefront
Roll to the entrance during opening hours, wheel back inside at night.
Restaurant & Café
Digital menu board at the door — swap content per meal service.
Hotel Lobby & Events
Reposition per event — welcome sign, wayfinding, sponsor screen.
Exhibition & Trade Show
Fast setup, breaks down flat for the next city on the tour.
Shopping Mall Pop-Up
Brand activation stand — different location each week, same hardware.
Corporate Reception
Visitor welcome board that can be moved for meetings and receptions.
Note on Software
This product is hardware only. The device ships with clean Android 13 / 14 (or Linux on request) and supports any standard APK, PWA or kiosk browser. You install your own signage or menu-management software; we can also pre-flash your image at the factory for OEM orders.

Configuration Options

Three pre-defined bundles, or fully custom BOM on request.

Entry
RK3566
2 GB RAM · 16 GB Storage
Basic signage & single-app kiosk
1080p video playback
Suitable for static content
RECOMMENDED
Standard
RK3576S
4 GB RAM · 32 GB Storage
Interactive menus & wayfinding
Smooth touch response
Sweet spot for most deployments
Performance
RK3588
8 GB RAM · 64 GB Storage
Rich media, 3D content, AI apps
Multi-window & camera analytics
For demanding custom apps

Technical Specifications

Reference values for the 43" portrait configuration. All fields customizable on request.

ChassisSlim vertical A-frame · portable · wheeled base
Finish OptionsMatte Black · Matte White
Screen Sizes32" · 43" · 55" · 65"
Panel TypeIPS LCD, 16:9 portrait, normally-black
Resolution1920 × 1080 (Full HD)
Brightness700 cd/m² (high-brightness, 350 nit option also available)
Contrast Ratio1200 : 1
Viewing Angle89° / 89° / 89° / 89°
Touch Technology10-point capacitive multi-touch
Operating SystemAndroid 13 · Android 14 · Linux (custom)
ProcessorRockchip RK3566 / RK3568 / RK3576 / RK3588 (Mstar V53 non-Android option)
Memory2 GB / 4 GB / 8 GB
Storage16 GB / 32 GB / 64 GB
Network10/100 M Ethernet · WiFi 802.11 b/g/n · Bluetooth 4.0
PortsHDMI out · VGA · USB 3.0 · 3.5 mm audio · DC in
AudioBuilt-in 2 × 5 W stereo speakers
Media SupportVideo: MPEG-1/2/4, H.263/264, VC1 up to 1080p · Audio: MP3, WMA, AAC · Image: JPEG
SecurityLockable rear service door
MobilityRear caster wheels · foldable A-frame stand
Dimensions (43")1500 × 583 × 78 mm
Weight (43")≈ 45 kg (net)
Power110 – 220 V AC adapter (included)
Operating Temperature0 – 40 °C
CertificationCE compliant

Sourcing From EELLNET

A decade of touch-signage manufacturing, built around B2B customers who value predictability.

10+
Years in touch signage
42+
Countries served
24 h
Quote response time
CE
Certified for export

Frequently Asked Questions

How is this different from a heavy floor-standing kiosk?
A traditional floor-standing kiosk has a boxed base that houses electronics — it's rugged but heavy, and once installed it stays put for years. This A-frame model is slim, considerably lighter and rolls on wheels, so one staff member can reposition it. Trade-off: less rugged for extreme high-traffic use, more flexible for retail rotations, events and pop-ups.
Does it include signage software?
No. The device is hardware only, shipped with clean Android 13 / 14 or Linux. You install your own signage or menu APK, or ask us to pre-flash your image at the factory for OEM orders.
Can it be used outdoors?
No — this is an indoor product (IP20). The 700 cd/m² panel handles bright indoor environments and glass storefronts well, but the unit is not rated for rain, direct sunlight or sub-zero temperatures. For semi-outdoor / outdoor deployments please ask about our sealed IP65 range.
Can the stand be folded flat for transport?
Yes. The movable support leg folds against the panel, giving a much slimmer package for shipping, storage and moving between event venues.
What is the minimum order quantity?
Standard sizes ship from as few as 3 units. OEM-customized units typically start at 20–30 units — contact us for exact terms on your target size and specification.

Request a quote in 24 hours

Tell us screen size, finish (black or white), SoC configuration and quantity — we'll respond with pricing, lead time and sample options.
