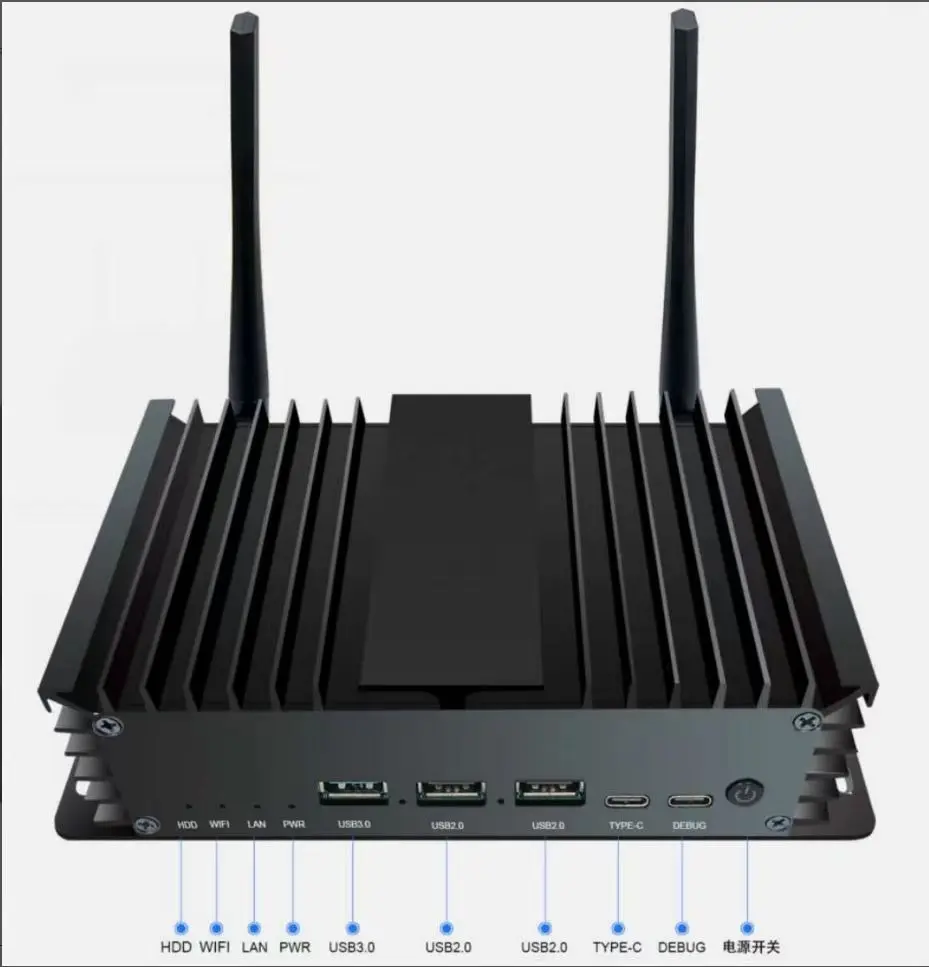

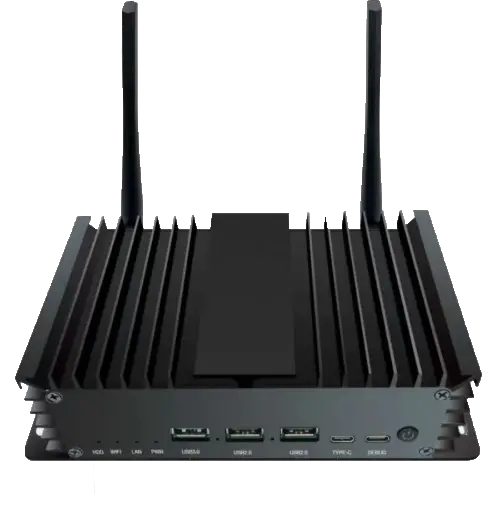

RK3576 Android TV Box（Metal Case）
Product Details 〉
| mainboard: RK3576 |
RK3576 Android TV Box (Metal Case) – The Ultimate Multi-OS Media Hub for Demanding Users!
Key Features & Benefits:
✔ Premium Metal Housing – Superior heat dissipation & industrial-grade durability
✔ Unmatched OS Compatibility – Runs Android 14/Debian/Ubuntu/Armbian/Wayland
✔ RK3576 Hexa-Core Processor – Smooth 4K@60fps playback & multitasking
✔ Expandable Storage – Supports up to 2TB SSD via USB 3.0
✔ Advanced Connectivity – Dual-band WiFi 6, Bluetooth 5.2, Gigabit Ethernet
Perfect For:
- Home Theater – Ultimate 4K HDR streaming
- Developers – Cross-platform testing environment
- Digital Signage – Commercial advertising solutions
- Light Desktop – Office productivity & browsing
Why Professionals Choose Us:
40% Better Cooling than plastic competitors
Multi-Boot Capability – Switch between OSes easily
Military-Grade Components for 24/7 operation
Root Access for advanced customization
Open-Source Friendly – Full driver support
Technical Specs:
- ARM Cortex-A55 hexa-core
- Mali-G52 GPU
- 4GB/8GB RAM options
- 32GB/64GB eMMC + microSD slot
- HDMI 2.1 with HDR10+
Special Offer: Free Linux OS pre-installation service!
Engineered for power users! Contact us for developer packages and bulk discounts.
Hardware Specifications
Chipset | RK3576 with Octa-core , Quad-Core Cortex-A72 and Quad-Core Cortex-A53 |
GPU | Mali-G52 MC3 |
NPU | 6.0 TOPS for INT8 Supports INT4,INT8,INT16,FP16,BF16 and TF32 operation |
RAM | 16G/ 32GB /64G /128G |
ROM | 32GB /64G /128G/256G/512G/1T |
SDRAM | LPDDR5: 32bit 4GB /8GB/16GB |
Operation System | Android 14.0/Debian/buildroot/Ubuntu/armbian/wayland |
Power Supply Specifications
Power Supply | DC 12V/2.0A |
Power Indicator (LED) | Power ON :Blue |
Main Features
Video Decoder | H.264 /AVC up to 4K@60fpS H.265/HEVC up to 8K@30fps or 4K@120fpS VP9 up to 8K@30fps or 4K@120fpS AVS2 up to 8K@30fps or 4K@120fpS AV1 up to 8K@30fps or 4K@120fpS |
Video Encoder | H.264 and H.265 up to 4K@60fpS Supports multi-stream encoding |
JPEG Encoder | YUV400/YUV420/YUV422/YUV444 Supports JPEG up to 4K@60fpS Supports image size is form 16x16 to 65520x65520 |
JPEG Decoder | YUV400/YUV411/YUV420/YUV422/YUV440/YUV444 Supports JPEG up to 4K@60fpS Supports image size is form 48x48 to 65520x65520 |
Support Media format | Avi/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
Support Music format | MP3/WMA/AAC/WAV/OGG/DDP/HD/FLAC/APE |
Support Photo format | HD JPEG/BMP/GIF/PNG/TIFF |
HDR | HDR10 / HDR HLG/HDR ViVid |
USB | 1 Type-c USB 3.2 Gen1, 1 Type-A USB 3.2 Gen1 and 2 High speed USB 2.0 |
DisplayPort | HDMI 2.1 and type-c dp v1.4 |
HDD file system | FAT16/FAT32/NTFS |
Support Subtitle | SRT/SMI/SUB/SSA/IDX+USB |
High Definition video output | 4K(3840*2160 pixel ) |
LAN | Ethernet:2Ports 1000M standard RJ-45 |
Wireless | AP6256 80MHZ 2.4G /5G dual-band Wifi, IEEE 802.11 a/b/g/n/ac |
Bluetooth | V5.1 EDR and BLE |
HDMI | HDMI 2.1 for 4k@120Hz |
- Unit (Without packaging)
L | W | H |
190mm | 106mm | 38mm |
- Giftbox (With Packaging)
L | W | H |
208mm | 140mm | 66mm |
- Carton 20pcs/CTN
L | W | H |
440mm | 350mm | 300mm |
